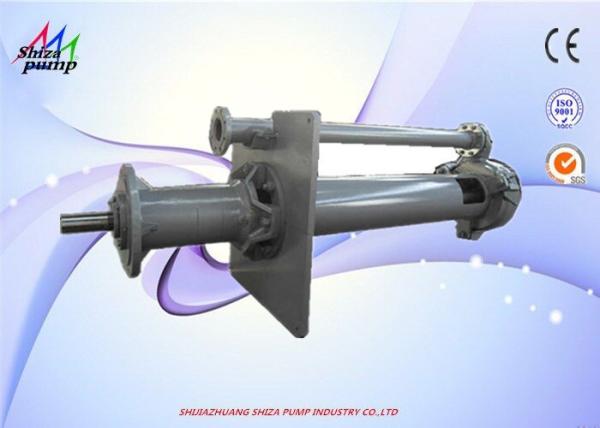

Durable Vertical Slurry Pump Wet Pit Submersible Pump Rubber Lined Centrifugal Pump
Durable Vertical Slurry Pump Wet Pit Submersible Pump Rubber Lined Centrifugal Pump
Specifications
Brand Name :
SHIZA
Model Number :
65QV - SPR
Certification :
ISO9001 / CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Theory :
Centrifugal
structure :
Vertical Cantilever slurry pump
Application :
For mining pit sludge
Gross weight :
313Kg
Pump Color :
Customized for you
Model :
65QV - SPR
Description

Durable Vertical Slurry Pump Wet Pit Submersible Pump Rubber Lined Centrifugal Pump

Introduction

Type SPSP(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps do not need any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

Wet parts of type SP pumps are made of abrasion-resistant metal.

All parts of type SP(R) pump immersed in liquid are lined with rubber. They are suited to transport the slurry which contains non-edge and abrasive particle .

The type with “L” is series of sump pump with extended shaft , which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.

Features

– Metal or rubber lined wet parts.

– Vertical construction, less Installation Space.

– Equipped with replaceable shaft protection sleeve.

– Double suction semi-open impeller.

– No submerged bearing or packing.

– Recessed impeller option passes over-sized material.

– Agitator option keeps solids in suspension.

– Can be run in insufficient suction duties.

– Smooth and stable operation.

– Special materials or casting for specific liquid.

Specification

Pump Model 65QV - SPR
Allowable Max. Power 30Kw
Capacity 22.5 - 105m³ / h
Head 5.5 - 30.5m
Speed 700 - 1500r / min
Max. Eff. 51%
Impeller Dia. 280mm

Performance Chart

Type

Allowable Max. Power

(Kw)

 Range Of Performance Impeller
Capacity

Head

m

Speed

rpm

Max Efficiency

%

 No. of Vanes

Diameter

mm
m³/hr L/S
40PV-SP 15 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 5 188
65QV-SP 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 5 280
100RV-SP 75 54-289 15-80.3 5-35 500-1200 56 5 370
150SV-SP 110 108-479.16 30-133.1 8.5-40 500-1000 52 5 450
200SV-SP 110 189-891 152.5-247.5 6.5-37 400-850 64 5 520
250TV-SP 200 261-1089 72.5-302.5 7.5-33.5 400-750 60 5 575
300TV-SP 200 288-1267 80-352 6.5-33 350-700 50 5 610
40PV-SPR 15 17.28-39.6 4.8-11 4-26 1000-2200 40 5 188
65QV-SPR 30 22.5-105 6.25-29.15 5.5-30.5 700-1500 51 5 280
100RV-SPR 75 64.8-285 18-79.2 7.5-36 600-1200 62


5

Construction Drawing

Durable Vertical Slurry Pump Wet Pit Submersible Pump Rubber Lined Centrifugal Pump
