Large Capacity Horizontal Centrifugal Water Pump For Meter Mining 75C - L
Large Capacity Horizontal Centrifugal Water Pump For Meter Mining 75C - L
Specifications
Brand Name :
SHIZA
Model Number :
75C - L
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Colour :
blue/yellow
type :
75C-L
MOQ :
1 set
Original :
China
Inlet :
75mm
bracket type :
C type bracket
Description

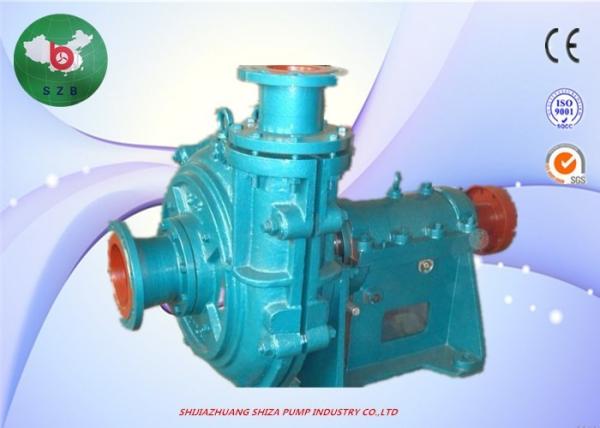

Large Capacity Horizontal Centrifugal Water Pump For Meter Mining 75C - L

Product overview for 75C-L model ​ slurry pump


1. light duty slurry pump . They are suitable for delivering low abrasive low density slurry for metallurgical ,mining ,coal and building material departments.

2. The shaft seal can adopt gland seal ,expeller seal or mechanical seal .

3. Type L(R) pumps operate in high speed with small volumes and light weight to save floor area

4.It is mainly used to transport the slurry which contains fine particle size and weight concentration

not more than 30%.The liner and impeller of this pump can be changeable ,either with anti-abrasive

metal or rubber material .


Type meaning of 75C-L model slurry pump

Type meaning for 75C-L model slurry pump

75C-L(R) model

75 Pump outlet 75mm
C pump bracket type
L Low abrasion slurry pump
R Natural Rubber

Performance table

type Max. ClearWaterPerformance Impeller Application
Capacity Head/m Speed/rpm Efficiency NPSH Nos Diameter
20 A-L 7.5 2.34-10.8 6-37 1400-3000 30 3.5-8 4 152.4 -Ball mill discharge
50 B-L 15 16.2-76 9-44 1400-2800 55 3.5-8 5 190 -Coarse tailings
75 C-L 30 18-151 4-45 900-2400 57 4 229 -Rod mill discharge
100 D-L 60 50-252 7-46 800-1800 60 4 305 -Coal washing
150 E-L 120 115-486 12-51.5 800-1500 65 4 381 -Wet crushers
200 E-L 120 234-910 9.5-40 600-1100 64 4 457 -Phosphate matrix
250 F-L 120 396-1425 500-800 77 5 550 -Minerals concentrate
300 S-L 560 468-2538 8-60 400-950 79 5 653 -Lime grinding
350 S-L 560 650-2800 10-59 400-840 81 5 736 -FGD waste water
400 ST-L 560 720-3312 7-51 300-700 80 5 825 -Flotation
450 ST-L 560 1008-4356 9-48 300-600 80 5 933 -Process chemical
550 TU-L 1200 1980-7900 10-50 250-475 86 5 1213 -Pulp and paper

Selection & Performance Chart

Large Capacity Horizontal Centrifugal Water Pump For Meter Mining 75C - L
