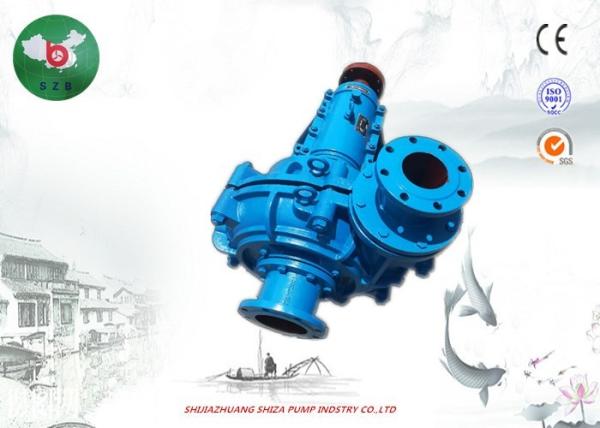

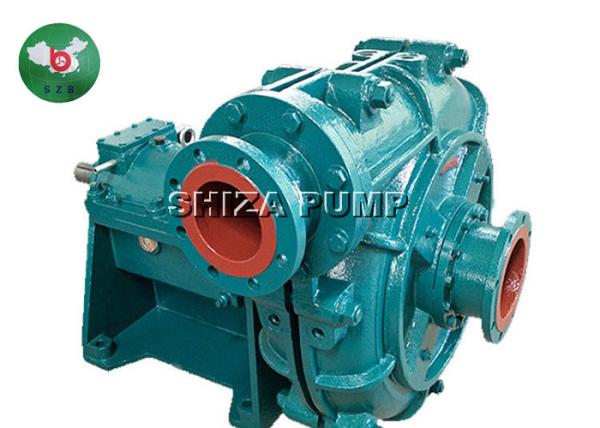

200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
200m Head Horizontal End Suction Centrifugal Pump For Power Plant Coal Mine
Specifications
Brand Name :
SHIZA
Model Number :
100ZJ-I-A36
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
coal mine slurry water power plant pump
Model :
100ZJ-I-A39 65ZJ-I-A27
Capacity: :
56m3/h
HS :
8413709990
Location :
China
Pump color :
customized
Description

200m Head Centrifugal Mine Slurry Pump coal mine slurry water power plant pump

Product overview

ZJ series slurry pump is a kind of single stage, end suction, centrifugal type pump. The wet part is made of high chrome white iron and has high performance in anti-abrasive, anti-corrosive, anti-shock aspect.

This can give pump longer life and economic cost performance. This kind of pump can be divided into two kinds by structure: horizontal (ZJ series ) and vertical (ZJL series ). For the horizontal version, the discharge diameter can range from 350mm,300mm,250mm,200mm,150mm,100mm,80mm,65mm

,50mm,40mm ,etc.

This kind of pump now is widely used in power plant, metallurgy industry, coal washing industry, building

industry and chemical industry. Mainly used to transport the abrasive slurry,

Main features

1. Use of inner and outer double layer metal structure.

2. Casing middle split vertically.

3. Discharge port can be positioned at 8 different positions at an interval of 45°.

4. Depending on design of bearing housing, bearing lubrication can be :

5. Thin oil lubrication for box type.

6. Grease lubrication for cylinder type.

7. Thin oil or grease lubrication for bearing housing with inserted cover.

Working range:

Outlet Diameter: 80-200mm

Capacity: 4-2500m3/h

Head: 9-130m

Rotation Speed: 490-1480r/min

Power: 0.55-800kW

Performance table

MODEL Parameter
TYPE Capacity Head Speed NPSHr Efficiency Shaft Power Matingmotor Weight Dia.ofpump
Q H n (m) P (kg) (mm)
(m3/h) (m) (r/min) (%) (kw) Power Specif Inlet Outlet
(kw)
40ZJ-I-A17 9 44.6 2900 4.5 33.2 3.3 5.5 Y132S1-2 230 40 40
18 45.7 49.5 4.2 7.5 Y132S2-2
23 39.3 52.4 4.7 7.5 Y132S2-2
40ZJ-I-A17 4 10.3 1400 2.5 33.2 0.3 0.55 Y801-4 230 40 40
9 9.9 49.5 0.5 1.1 Y90S-4
11 9.1 52.4 0.5 1.1 Y90S-4
50ZJ-I-A33 26 42.5 1480 6 32.8 9.2 15 Y160L-4 680 80 50
40 40 40.6 10.7 18.5 Y180M-4
54 34.5 41.4 12.3 18.5 Y180M-4
50ZJ-I-A33 17 17.9 960 2.9 32.8 2.5 4 Y132M1-6 680 80 50
26 16.8 40.6 2.9 5.5 Y132M2-6
35 14.5 41.4 3.3 5.5 Y132M2-6
50ZJ-I-A46 48 85.8 1480 2.9 32.2 34.8 45 Y225M-4 690 80 50
77 82.3 41.6 41.4 55 Y250M-4
94 79.9 44.7 45.8 55 Y250M-4
50ZJ-I-A46 31 36.9 970 1.4 32.3 9.7 15 Y180L-6 690 80 50
50 35.4 41.7 11.6 15 Y180L-6
62 34.3 44.7 13 18.5 Y200L1-6
50ZJ-I-A50 57 110.7 1480 3.8 33.9 50.7 75 Y280S-4 1078 80 50
91 105.5 43 60.8 75 Y280S-4
111 99.8 45.1 66.9 90 Y280M-4
50ZJ-I-A50 38 48.5 980 3 33.9 14.8 22 Y200L2-6 1078 80 50
60 46.3 43 17.6 30 Y255M-6
74 43.8 45.1 19.6 30 Y255M-6
