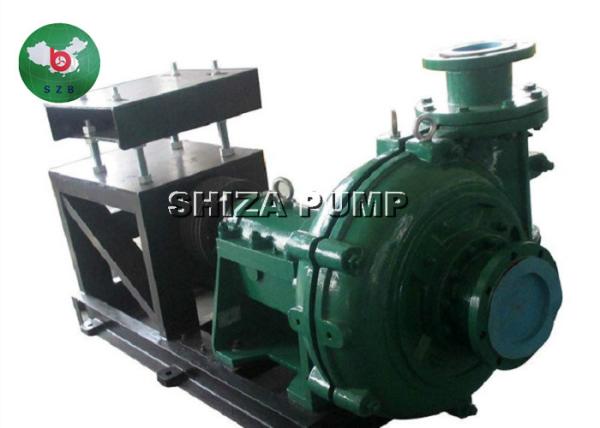

Mud Transfer Slurry Transfer Pump Single Stage End Suction Wear Resistant
Mud Transfer Slurry Transfer Pump Single Stage End Suction Wear Resistant
Mud Transfer Slurry Transfer Pump Single Stage End Suction Wear Resistant
Mud Transfer Slurry Transfer Pump Single Stage End Suction Wear Resistant
Specifications
Brand Name :
SHIZA
Model Number :
ZJ
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
A05 high chrome iron
Model: :
80ZJ-I-A33 65ZJ-I-A27
Capacity: :
56m3/h
Original :
China
Liner :
Metal liner
brand :
SHIZA
Description

horizontal mud transfer wear resistant slurry pump high quality, Single Stage Centrifugal Coal Mining Fly Ash Slurry Pump

Product overview

1. ZJ series single stage,single suction,centrifugal model slurry pump are desiGned and developed by our company.This series pumps are energy saving ,high efficiency pump which brings in domestic and

foreign advanced technique.There are upright structure pumps and horizontal structure pumps.

2. The diameter of horizonal pump exit is from 40 to 300mm.And for the upright model,it is from 50 to

150mm.They are desiGned in a complete range of sizes and specifiactions to meet the needs of clients.

3. It is designed with reseanable hydraulic design.Flow parts are made of hard alloy cast iron or

rubber.According to the different requirement on the pumps,the shaft seal types can be mechanical

seal ,packing seal,impeller or compound seal.This series pumps have many features,such as high

efficiency,reasonal structure,not heavy,long service life,reliable performance,low noise and etc.

4. this kind pumps widely used in the field of metallurgical industry,mining inductry construction industry etc.They can be used to handle corrosive slurry or corrosive,mortal,ore magma.The weight

concentration can reach sparately to 45% and 80%.According to different technological processed,this

series of pumps can be designed as series multi have been reached to the advanced domestic

standards.

Main features:

Outlet Diameter: 80-200mm

Capacity: 4-2500m3/h

Head: 9-130m

Rotation Speed: 490-1480r/min

Power: 0.55-800kW


Performance table

Model Capacity Head Speed NPSHr Efficiency Power Weight Dia.of pump(mm)
(m3/h) (m) (r/min) (m) (%) (kw) (kg) Inlet Outlet
40ZJ-I-A17 18 42.7 2900 4.5 49.5 7.5 230 40 40
40ZJ-I-A17 9 9.9 1400 2.5 49.5 1.1 230 40 40
50ZJ-I-A33 40 40 1480 6 40.6 18.5 680 80 50
50ZJ-I-A33 26 16.8 960 2.9 40.6 5.5 680 80 50
50ZJ-I-A46 77 82.3 1480 2.9 41.6 55 690 80 50
50ZJ-I-A46 50 35.4 970 1.4 41.7 15 690 80 50
50ZJ-I-A50 91 105.5 1480 3.8 43 75 1078 80 50
50ZJ-I-A50 60 46.3 980 3 43 30 1078 80 50
65ZJ-I-A27 56 27.5 1460 2.7 60 11 795 100 65
65ZJ-I-A27 37 11.9 960 1.8 60 4 795 100 65
65ZJ-I-A30 62 33.9 1460 3 62 15 820 100 65
65ZJ-I-A30 41 14.7 960 2 62 5.5 820 100 65
80ZJ-I-A33 128 40.3 1480 3.4 64 30 860 125 80
80ZJ-I-A33 85 17.6 980 2.3 64 11 860 125 80
80ZJ-I-A36 140 48 1480 3.7 66 37 885 125 80
80ZJ-I-A36 93 21 980 2.5 66 11 885 125 80
80ZJ-I-A39 158 57.9 1480 4 63 55 945 125 80
80ZJ-I-A39 105 25.4 980 2.4 63 18.5 945 125 80
80ZJ-I-A42 170 67.2 1480 4.2 65 75 970 125 80
80ZJ-I-A42 113 29.5 980 2.5 65 22 970 125 80
80ZJ-I-A52 182 105.5 1480 4.3 52 132 1080 125 80
80ZJ-I-A52 121 46.3 980 2.1 52.0 37 1080 150 80
100ZJ-I-A33 202 37.8 1480 3.2 69.0 37 870 150 100
100ZJ-I-A33 134 16.6 980 1.8 69.0 15 870 150 100
100ZJ-I-A36 220 45.0 1480 3.5 71.0 55 890 150 100
100ZJ-I-A36 146 19.7 980 2.0 71.0 15 890 150 100
100ZJ-I-A39 228 57.8 1480 3.8 66.0 75 1060 150 100
100ZJ-I-A39 150 25.4 980 2.4 66.0 22 1060 150 100
100ZJ-I-A42 245 67.0 1480 4.0 68.0 90 1078 150 100
100ZJ-I-A42 162 29.4 980 2.5 68.0 30 1078 150 100
100ZJ-I-B42 149 63.8 1480 2.8 61.0 55 1070 150 100
100ZJ-I-B42 99 28.0 980 1.8 61.0 18.5 1070 150 100
100ZJ-I-A46 176 80.4 1480 4.2 66.5 110 1310 150 100
100ZJ-I-A46 183 35.3 980 2.3 66.5 37 1310 150 100
100ZJ-I-A50 300 95.0 1480 4.5 68.5 132 1440 150 100
100ZJ-I-A50 199 41.7 980 2.5 68.5 45 1440 150 100
150ZJ-I-C42 450 58.0 1480 4.5 74.0 132 1550 200 200
150ZJ-I-C42 298 25.4 980 2.2 74.0 37 1550 200 200
150ZJ-I-A48 365 36.9 980 3.0 74.0 75 1610 200 200
150ZJ-I-A48 272 20.5 730 2.5 74.0 30 1610 200 200
150ZJ-I-A50 380 40.0 980 3.0 75.0 75 1630 200 150
150ZJ-I-A50 283 22.2 730 2.5 75.0 30 1630 200 150
150ZJ-I-A55 431 50.8 980 3.5 69.0 110 1760 200 150
150ZJ-I-A55 321 28.2 730 2.3 69.0 45 1760 200 150
150ZJ-I-A57 301 55.4 980 2.9 58.5 110 1800 200 150
150ZJ-I-A57 224 30.7 730 1.8 58.5 45 1800 200 150
150ZJ-I-C58 458 56.0 980 3.2 66.2 132 1760 200 150
150ZJ-I-C58 341 31.1 730 2.0 66.2 55 1760 200 150
150ZJ-I-A58 454 56.5 980 3.8 71.0 132 1780 200 150
150ZJ-I-A58 338 31.4 730 2.5 71.0 55 1780 200 150
150ZJ-I-A60 470 60.5 980 3.8 72.0 132 1800 200 150
150ZJ-I-A60 350 33.6 730 2.5 72.0 55 1800 200 150
150ZJ-I-A63 485 68.6 980 4.0 68.0 160 2050 200 150
150ZJ-I-A63 361 38.0 730 2.5 68.0 75 2050 200 150
150ZJ-I-A65 500 73.0 980 4.0 69.0 185 2100 200 150
150ZJ-I-A65 372 40.5 730 2.5 69.0 75 2100 200 150
150ZJ-I-A70 285 87.1 980 3.0 58.4 160 2985 200 150
150ZJ-I-A70 212 48.3 730 2.0 58.4 75 2985 200 150
200ZJ-I-A58 715 54.2 980 4.0 79.0 160 2380 250 200
200ZJ-I-A58 533 30.1 730
