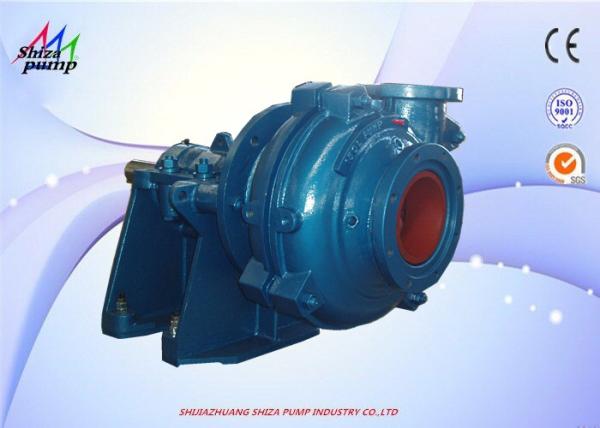

150mm Discharge Single Suction Centrifugal Pump , High Capacity Industrial Pump
150mm Discharge Single Suction Centrifugal Pump , High Capacity Industrial Pump
Specifications
Brand Name :
SZ-PUMP
Model Number :
150E - L
Certification :
ISO9001 / CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Neogotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Use :
Mineral Processing
Type :
Horizontal pump
Principle :
Centrifugal
Duty :
Light Duty
Pump Weight :
750kg
Description

150mm Discharge Single Suction Centrifugal Pump , High Capacity Industrial Pump

Introduction

Type L pumps are cantilevered, horizontal, centrifugal slurry pumps, which are also called light duty slurry pump. They are suitable for delivering low abrasive low density slurry for metallurgical, mining, coal and building material departments. The shaft seal can adopt gland seal, expeller seal or mechanical seal.

Type L pumps operate in high speed with small volumes and light weight to save floor area. It is mainly used to transport the slurry which contains fine particle size and weight concentration not more than 30%. The liner and impeller of this pump can be changeable ,eight with anti-abrasive metal or rubber material.

Advantages

1. Discharge branch can be positioned at intervals of 45 degree.
2. Good replaceability of components with original pump.
3. Wear-resistant metal and long service life time.
4. With greater axial and radial load rating capacity,
5. Discharge direction can be installed at intervals of 45 degrees as request and oriented to any eight positions to suit applications.
6. Suit different working condition.
7. Wide application, high efficiency and easy to maintain.
8. Wide options for impeller.
9. Bearing assembly use grease lubrication.

Specification

Pump Model 150E - L
Max. Power 120 kw
Capacity 115-568.8 m³ / h
Head

10.5 - 51.8m
Speed 800 - 1500
Max. Eff 60%
NPSH 2.5 - 6m
Impeller DIa 381 mm

Typical Applications

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Selection & Performance Chart

150mm Discharge Single Suction Centrifugal Pump , High Capacity Industrial Pump
