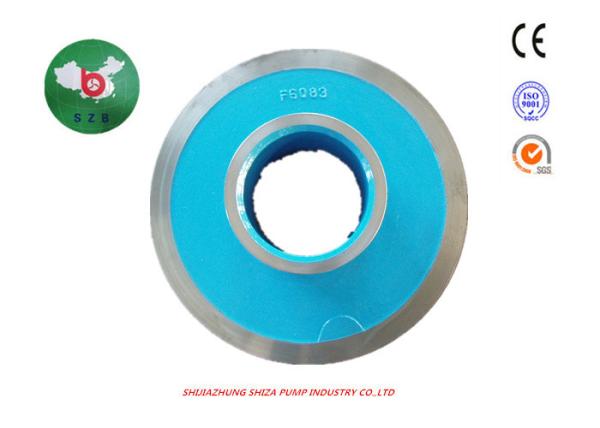

Throatbush F6083 OEM Slurry Pump Parts ,Rubber A48 Cover Plate Liner Insert
Throatbush F6083 OEM Slurry Pump Parts ,Rubber A48 Cover Plate Liner Insert
Specifications
Brand Name :
SHIZA
Model Number :
8/6E-AH
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
27%chrome alloy A05
Part code :
throatbush f6083
Name :
Cover Plate liner insert
MOQ :
1 set
Original :
China
Bracket type :
E bracket for pump
Description

A05 centrifugal slurry pump throatbush f6083 OEM pump parts ,rubber material throatbush or A05 A48 material throatbush

Slurry pump Flow parts are Impeller, volute liner, throatbush, back liner, liner insert....
Shijiazhuang Shiza Pump Industry Co., Ltd offers slurry pumps and slurry pump parts.
Our complete range of replacement parts of horizontal slurry pumps sizes

1.5x1 inch to 14x12inch ,to 28/24 inch (Discharge Size from 20mm to 600mm);
SP or SPR Vertical slurry pump discharge size from 1.5inch to 8inch (40mm to 200mm).;
G or GH Sand and Gravel Pump from 6/4inch to 32/28inch (Discharge Size from 100mm to 700mm);
Customized parts according to customers' drawing if you quantity big

Warman slurry pump parts code:

tell me the standard code no .we can quote you price immediately :

Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.

Material: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247 etc
1.For Minging use,the slurry pump designed to handle the transfer of abrasive and high density slurries,so the material is Cr26/Cr27
2.For chemical medium,the impeller should be SS 304/SS316, or duplex stainless steel,carbon steel
3.For clean water the impeller can be cast iron,grey iron,ductile iron.

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted
