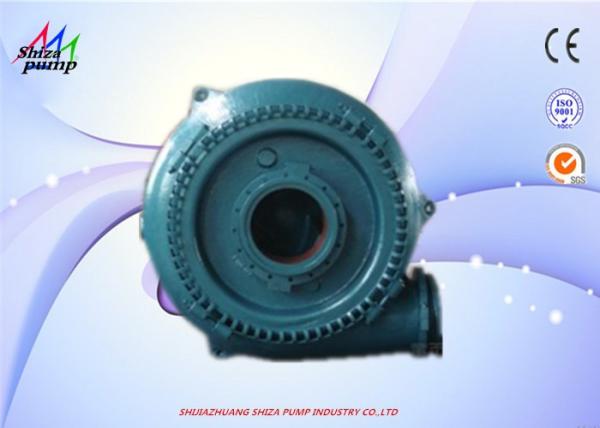

High Volume Solid Horizontal Centrifugal Slurry Pump 12 Inch Inlet / Outlet
High Volume Solid Horizontal Centrifugal Slurry Pump 12 Inch Inlet / Outlet
Specifications
Brand Name :
SHIZA
Model Number :
10/8
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Product name :
Iron Ore Volcanic Mud Ash Solid Slurry Pump
More application :
solid pump,tailing pumps
Material :
r27, Cr15Mo3
MQQ :
1 Set
Max Pump Head :
Over 100m head pump
Country :
China
Description

High Volume Solid Horizontal Centrifugal Slurry Pump 12 Inch Inlet / Outlet

Features

1) Cantilever, horizontal centrifugal battle max slurry pump

2) Better wear-resistance and corrosive resistance

3) Frame plate for type pumps have replaceable wear-resistant metal( high chrome alloy ) liners or

rubber liners. Impeller material : high chrome alloy or Natural rubber .

4) In allowable pressure range, it can be used in series in stages, and allowable maximum working

pressure is 3.6Mpa.

5) Expeller seal, mechanical seal and packing seal are available .

6) The discharge branch can be positioned at interval of 45 degrees by request and oriented to any

eight positions to suit installations and applications.

7) To adapt to convey heavy abrasion, high concentration dreg ,battle max slurry pump's body is used

double-shell construction , in other words, being made of inside lining and outside casin

Performance Chart

(R) L(R), M HH SP(R) G AF Series
1.5/1B-(R) 20A-L 1.5/1 C-HH 40PV-SP(R) 6/4D-G 2QV-AF
2/1.5B-(R) 50B-L(R) 3/2D-HH 65QV-SP(R) 8/6E-G 3QV-AF
3/2C-(R) 75C-L 4/3E-HH 100RV-SP(R) 10/8F-G 6SV-AF
4/3C-(R) 100 D-L 4/3X-HH 150SV-SP(R) 10/8S-G 8SV-AF
6/4D-(R) 150E-L 6/4F-HH 200SV-SP 12/10G-G
6/4E-(R) 300S-L 6/4X-HH 250TV-SP 14/12G-G
8/6E-(R) 10/8 R-M 6S-H 14/12T-G
8/6R-(R) 10/8 E-M 8/6S-H 16/14 G-G
10/8F-(R) 8/6X-H 16/14TU-GH
10/8X-(R) 6S-HP 16/14H-GH
12/10ST-(R) 8/6S-HP 18/16G-G
14/12ST-(R) 8/6X-HP 18/16TU-GH
16/14TU-(R)
20/18G(TU)-(R)

Application

Slurry pump can be widely used in mines, electric power, metallurgy, coal, environmental protection and other industries transport slurry containing abrasive solid particles.Such as metallurgical mill pulp conveying, hydraulic ash thermal power plants, coal washery coal slurry and heavy media delivery, dredging river, river dredging, etc.In the chemical industry, also can carry some corrosive slurry containing crystallization.


Main matrial listing

Pumps spare and parts material :

High chrome alloy:A33, A05, A07, A49, etc.

Natural rubber: R08, R26, R33, R55, etc.

Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, and

so on.
