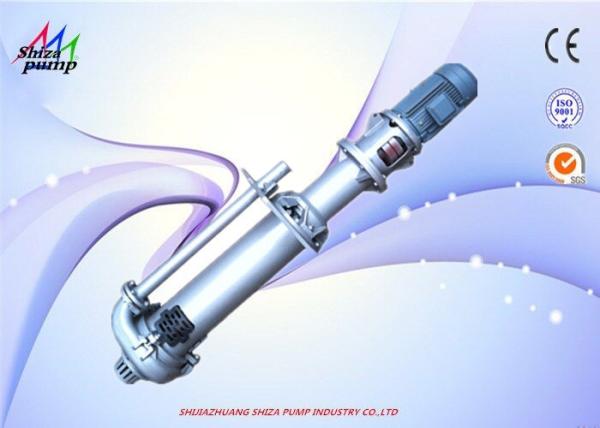

Chemical Water Turbine Vertical Spindle Pump For Hospital / Hotel Sewage Disposal
Chemical Water Turbine Vertical Spindle Pump For Hospital / Hotel Sewage Disposal
Specifications
Brand Name :
SHIZA
Model Number :
SPR
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
based on quantity
Supply Ability :
300sets monthly
Packaging Details :
wooden case
Theory :
Centrifugal Pump
Application :
Mining indusry
LINER :
Rubber
METAL LINER :
A05
Description

Chemical Water Turbine Vertical Spindle Pump For Hospital / Hotel Sewage Disposal

Poduct Name Abrasive centrifugal vertical submerged slurry pump
Material Cr27
Color customized
Standard CE
Grade A05, A07, A09, A12, A33, A49, A61, R08, R55, S31, SS304, SS316
Service Free trial
Warrenty 1 year
Used Mining industry water transfer

Usage:

1. Factory severely-polluted sewage discharge.
2. The urban sewage treatment plants drainage system.
3. Residential area sewage drainage.
4. Hospital, hotel sewage disposal.
5. Municipal engineering and construction site.
6. Exploration and mining.
7. Rural digester irrigation.

working range

Performance Range:

Outlet Diameter: 40--500mm(1.6--20inch)

Flow Capacity: 17--1260m3/h

Head: 4--40m

Performance table:

Type

Outlet Dia.

(mm)

Bearing

Frame

Max Power

(KW)

Max Particle

Size (mm)

Pumping Depth

(mm)

No. of

Vanes

Impeller Dia.

(mm)
SP-40P 40 P 15 12 900*1200 5 188
SP-65Q 65 Q 30 15 900*1200*1500 5 280
SP-100R 100 R 75 32 1200*1500*2100 5 370
SP-150S 150 S 110 45 1500*1800*2100 5 450

Type

Outlet Dia.

(mm)

 Bearing Frame

Max Power

(KW)

Max Particle

Size (mm)

Pumping Depth

(mm)

No. of

Vanes

 Impeller Dia. (mm)
SP-40PR 40 P 15 12 900*1200 5 188-195
SP-65QR 65 Q 30 15 900*1200*1500 5 280-290
SP-100RV 100 R 75 40 1200*1500*2100 5 370
SP-150SVR 150 S 110 45 1500*1800*2100 5 450

Features

1. Pump Casing : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS

CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS

CD4-MCu ; Bronze.
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS

DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , Gland packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
7. Wearing Ring: Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
