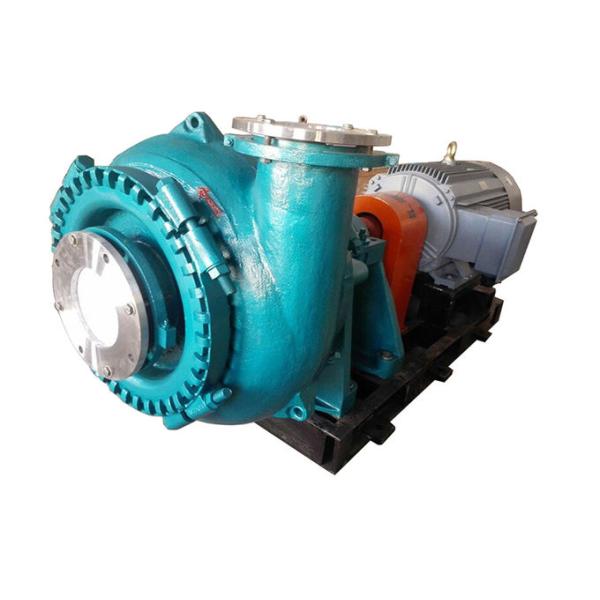

High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump
High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump
Specifications
Brand Name :
SHIZA
Model Number :
10 / 8F - G
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Supply Ability :
300sets monthly
Packaging Details :
wooden case
Name :
Sand Gravel Pump
Material :
High chrome A05 alloy
location :
China
brand :
SHIZA
moq :
1 set
OEM :
Yes
Description
High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump

Overview:

Features: 10 / 8F - G type gravel pump is a introduced technology product. The pump adopts a single pump shell structure connected by a cassette. It is a single-stage single-suction cantilever centrifugal pump with light weight, good cavitation performance and abrasion resistance. Strong, wide flow passage, easy to install and use, etc., can continuously transport large particles of strong abrasive mud, suitable for dredger dredging, sand mining and sand dredging.
Structure: This series of gravel pumps consists of pump head, sealing assembly, bearing assembly, bracket, etc. The bearing lubrication method is grease lubrication. The over-flow component impeller, pump body, front guard plate and rear guard plate are all made of strong anti-wear high-chromium alloy or wear-resistant alloy steel with a hardness of not less than 58HRC.
Sealing form: packing seal, auxiliary impeller seal, packing plus auxiliary impeller seal, mechanical seal and other types.
Transmission mode: V-type V-belt drive, flexible coupling drive, gear reducer drive, hydraulic coupling drive, variable frequency drive, thyristor speed control, etc. A variety of speeds and a variety of variants allow the pump to operate under optimal conditions. Long service life and high operating efficiency can meet a variety of harsh conveying conditions.

Type meaning for dredge pump

10 / 8F - G

10----------------pump inlet size (inch )

8----------------pump outlet size (inch)

G----------------G gravel pump

G(H) gravel pump material list for parts:

Part Name Material Specification HRC Application OEM Code
Bowl, door, back liner & impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc. A33
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Door clamp plate, bearing house & base Metal Grey iron G01
Ductile iron D21
Shaft Metal Carbon steel E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 C21
304 SS C22
316 SS C23
Joint rings & seals Rubber Butyl S21
EPDM rubber S01
Nitrile S10
Hypalon S31
Neoprene S44/S42
Viton S50

Performance table:

Pump Model Allowable Clear Water Performance
Max. Power Capacity Q Head Speed Max.Eff. Impeller. Dia. (mm)
(kw) m3/h H (m) n(r/min) (%)
6/4D-G 60 36-250 5-52 600-1400 58 378
8/6E-G 120 126-576 6-45 800-1400 60 378
10/8S-G 560 216-936 8-52 500-1000 65 533
10/8F-G 260 216-936 8-52 500-1000 65 533
10/8S-GH 560 180-1440 24-80 500-950 72 711
12/10F-G 260 360-1440 10-60 400-850 65 667
12/10G-G 600 360-1440 10-60 400-850 65 667
12/10G-GH 600 288-2808 16-80 350-700 73 950
14/12G-G 600 576-3024 8-70 300-700 68 864
16/14G-G 600 720-3600 18-44 300-500 70 1016
16/14TU-G 1200 324-3600 26-70 300-500 72 1270
18/16G-G 600 720-4320 12-48 250-500 72 1067
18/16TU-G 1200 720-4320 12-48 250-500 72 1067

Construction Drawing

High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump

Selection ＆ Performance Chart

High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump

Inspection and Detection:
With various inspection and detection instruments ,like three-coordinate measuring instrument ,metallographic microscope, direct reading spectrometer ,Brinell hardness meter ,Vickers hardness meter, carbon and sulfur analyzer and other detection equipment,we can carry on the chemical composition analysis ,physical properties test ,coordinate measurement for various steel&steel materials
Complete pump set inspection:
We have performance testing platform for each batch pump inspection before delivery
Quality control system for each set pump:
Purchasing 1. Strict rules and procedures to choose the raw material supplier
2. Each batch raw material will be tested by quality control department
Casting 1 .Melting:Chemical element analysis for raw material before and after stove .
2. Moulding :Strict sand moulding qualified before iron liquid pouring for casting
3. Cleaning semi-finished parts sand :Strict inspection on the appearance and size qualified before storage.
Machining 1.Self -inspection and inspection between different steps.
2.First part inspection
3.Procedures inspection
4..Inspection before storage the mining slurry pumps
Assembling 1.Inspector tracks the whole process of assembly of slurry pumps
2.Slurry Pump pressure inspection and fillout the testing table
3.Painting inspection
4.Performance testing and fillout the testing table
5.Packing inspection of slurry pump
6.Issue quality certificate

High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump

High Efficiency Sand Gravel Pump 10 / 8F - G Wear Resistant Centrifugal Sand Pump
