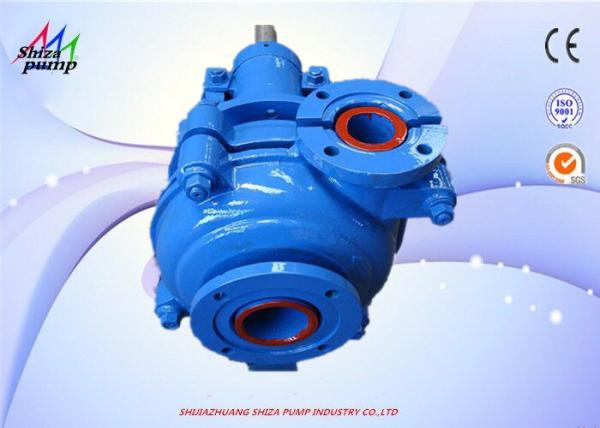

Chrome Alloy Impeller High Head Slurry Pump With Electric / Diesel Motor

Main introduction

The 3 / 2 C - slurry pump widely used in river sand dredging work, construction site, paper&pulp,mining plant and power station. Such as coase sand suction, fine tailings, mineral processing, gold mining beneficiation and so on.

3 / 2 C - slurry pump (suction 3 inch discharge 2 inch) double pump shell structure hollow sculpture form: According to the specific expression form of the existing hollow sculpture, it can be roughly divided into three-dimensional hollow sculpture and flat hollow sculpture. The horizontal centrifugal slurry pump body and pump cover are made of gray cast iron or ductile iron according to the working pressure. They are vertically opened and bolted. The pump body has a stop and is bolted to the bracket. The pump's spout can be rotated and installed at eight angles. The front and rear covers of the impeller are equipped with back blades to reduce leakage and increase pump life. slurry pump pump body pump cover and flow components: This series of pumps are horizontal, vertical open type, double pump shell structure slurry pump. The pump body and pump cover are equipped with a replaceable metal lining. The lining is made of high-chromium wear-resistant alloy material. The lining can be used until wear-through, which extends the maintenance period and reduces operating costs. The pump outlet direction can be rotated and installed at 8 angles.

Advantages

1.Slurry pump's bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication.

2.Ductile iron casing provides durable, safety and long service life.

Basic Information

Model meaning

3 / 2 C-

3-------Suction diameter(Inch)

2-------Discharge diameter(Inch)

C-------Frame type

------ Slurry pump type

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Construction Design

1. The horizontal slurry pump should be placed on a firm foundation to withstand the full weight of the pump to eliminate vibration and tighten all anchor bolts;
2. The pipeline and valve should be supported separately. There is a gasket at the pump flange. When tightening the coupling bolt, please pay attention to the metal lining of the pump is higher than the flange. At this time, the bolt should not be tightened tightly. 2/1.5 slurry pump rotor to avoid damage to the gasket;
3. Rotate the shaft by hand according to the direction of rotation of the pump. The shaft should be able to drive the impeller to rotate and there should be no friction. Otherwise, the impeller clearance should be adjusted;
4. Check the motor steering. Ensure that the horizontal slurry pump rotates in the direction of the arrow marked on the pump body. Note that the horizontal slurry pump is not allowed to rotate in the opposite direction, otherwise the impeller thread will trip, causing damage to the pump;
5. When driving directly, the pump shaft and motor shaft should be accurately centered. The pump shaft and motor shaft should be parallel when the belt is driven, and the position of the sheave should be adjusted so as to be perpendicular to the groove to avoid violent vibration and abrasion;
6. A detachable short tube 3/2 slurry pump impeller should be installed at the suction pipe of the horizontal slurry pump. The length should be sufficient to disassemble the pump cover and replace the wearing parts to facilitate the maintenance of the pump. The length can be Design according to the actual situation.

Performance table
