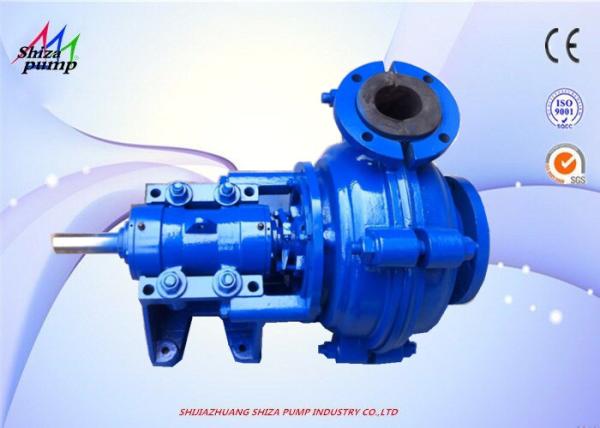

Heavy Duty Mud Centrifugal Slurry Pump With Cr26 A05 Metal / Rubber Lined
Heavy Duty Mud Centrifugal Slurry Pump With Cr26 A05 Metal / Rubber Lined
Specifications
Brand Name :
SHIZA
Model Number :
3/2 C-(R)
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :

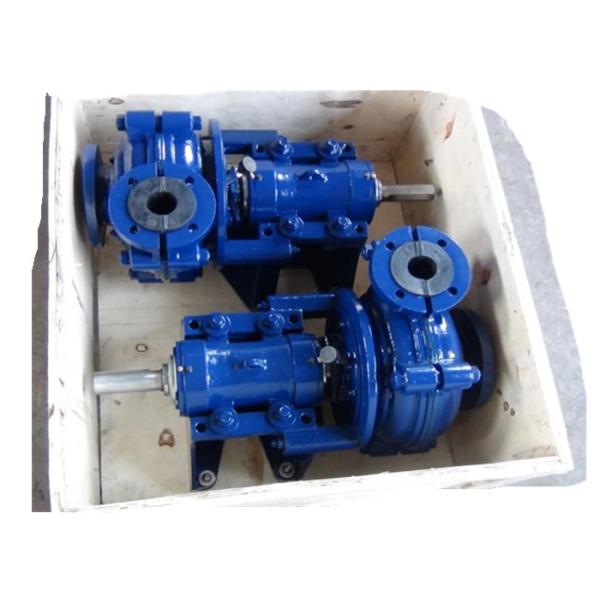

wooden case
type :
centrifugal pump for mining
MOQ :
1 set
Original :
China
pump model :
3/2 C-
Inlet :
75mm
outlet :
50mm
bracket type :
C bracket
Pump type :
slurry pump
Description

Heavy Duty Mud Centrifugal Slurry Pump With Cr26 A05 Metal / Rubber Lined

Porudct overview

1. Type (R),HH ,M(R) pumps are cantilevered ,horizontal ,centrifugal slurry pumps.They are designed

for handling abrasive or corrosive slurry in metallurgical ,mining,coal ,power,building

Material and other industrial departments etc.

2. (R),HH are also called heavy duty slurry pumps,are used to transport the strong abrasive high

density or low density high head slurry.Under the allowable pressure.the pumps of this type also can be

installed in multistage series .HH type pump is mainly used for transport low density high head or high

density low abrasive high head slurry.

3. M(R) is a kind of middle slurry pump,used to transport the fine particle size and middle density slurry .

The liner and impeller of model can be changeable and material can be either anti-abrasive metal or

rubber .But material of liner and impeller of HH model only can be metal version.Rubber material wet

parts are mainly used for transport the slurry which contains fine ,non-sharp particle size.

4. Discharge can be positioned at the intervals of 45 degrees by any eight directions

to suite installations and applications.

Application

a. Wear resistant slurry pump is widely used for transporting slurries with high ablation or high

density.

b. Widely used for mining.

c. Widely used for metallurgy.

d. Widely used for building materials.

Performance table

MODEL ALLOWABLE MATING
MAX.POWER
(KW)		 MATERIAL CLEAN WATER PERFORANCE IMPELLER
LINER IMPELLER Q Capacity H Head Speed Max. Eff. NPSH VANES NO. IMPELLER DIA
m3/h L/s (m) n(r/min) (%) (m) (mm)
1.5/B- 15 M M 12.6-28.8 3.5-8 6-68 1200-3800 40 2--4 5 152
RU RU 10.8-25.2 3--7 7-52 1400-3400 30 3
1/1.5B- 15 M M 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
2/1.5B- 15 M M 32.4-72 9--20 6-58 1200-3200 45 3.5-8 5 184
RU RU 25.2-54 7--15 5.5--41 1000-2600 50 2.5-5 5 178
3/2C- 30 M M 39.6-86.4 11--24 12-64 1300-2700 55 4--6 5 214
RU RU 36-75.6 10--21 13-46 1300-2300 60 2--4 5 213
3/2D-HH 60 M M 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 5 457
4/3C- 30 M M 86.4-198 24-55 9-52 1000-2200 71 4--6 5 245
RU RU 79.2-180 22-50 5-34.5 800-1800 59 3--5
4/3E-HH 120 M M 126-252 35-70 12-97 600-1400 50 2--5 5 508
6/D- 60 M M 162-360 40-100 12-56 800-1550 65 5--8 5 365
RU RU 144-324 40-90 12-45 800-1350 65 3--5 5 365
6/4S-HH 560 M M 324-720 90-200 30-118 600-1000 64 3-8 5 711
6S-HH 560 M M 468-1008 130-280 20-94 500-1000 65 4-12 5 711
8/6E- 300 M M 360-828 100-230 10-61 500-1140 72 2-9 5 510
RU RU 324-720 90-200 7-49 400-1000 65 5-10 5 510
10/8E-M 120 M M 666-1440 185-400 14-60 600-1100 73 4-10 5 549
10/8ST- 560 M M 612-1368 170-380 11-61 400-850 71 4-10 5 686
RU RU 540-1118 150-330 12-50 400-750 75 4-12
12/10ST- 560 M M 936-1980 260-550 7-68 300-800 82 6 5 762
RU RU 720-1620 200-450 7-45 300-650 80 2.5-7.5
14/12ST- 560 M M 1260-2772 350-770 13-63 300-600 77 3-8 5 965
RU RU 1152-2520 320-700 13-44 300-500 79 3-10
16/14TU- 1200 M M 1368-3060 380-850 11-63 250-550 79 4-10 5 1067
20/18TU- 1200 M M 2520-5400 700-1500 13-57 200-400 85 5-10 5 1370
