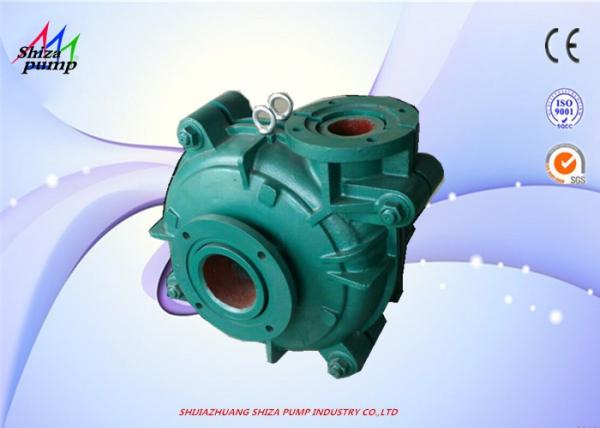

Horizontal Single Stage Centrifugal Sludge Pump With Rigidity Shaft High Density
Horizontal Single Stage Centrifugal Sludge Pump With Rigidity Shaft High Density
Specifications
Brand Name :
Shiza pump
Model Number :
/ (R) series
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Theory :
Centrifugal Pump
Structure :
Single-stage Pump
Application :
corrosive and abrasive mining slurries
Standard or Nonstandard :
Standard
Description

Horizontal Single Stage Centrifugal Sludge Pump With Rigidity Shaft High Density

Features

1). SHIZA Slurry pumps for the cantilever, horizontal centrifugal slurry pump.

2). Wear-resistant, high efficiency,low noise and longer life. heavy duty slurry pump

3). Seal of pump can be used for packing seal or centrifugal seal. rotating eight different installation

angle.

4). Casing and spare parts are all made of high chrome,anti-wear,anti-abrasive material

5). Reasonable price,high quality, short delivery time.

6). High capacity, high head.

7). SHIZA Slurry pumps are popular among the mining, metallurgy, electric power and other

industries

Parameters range

Pump range: 25mm to 450mm (1’’ to 18’’)

Capacity: 4-5400m3/h

Head: 5-118m

Wet part material commonly is 27Cr white iron alloy or rubber

Other material can be produced as per your specific application

Application of slurry pump

High density slurry transfer;

· Thickener underflow recirculation;

· Reagent dosing;

· Froth flotation;

· Cyanide processing etc.

· Mill discharge;

· Cyclone feed;

· Tailings


METAL LINED PUMPS RUBBER LINED PUMPS
No. Part Description Material Specification No. Part Description Material Specification
1 Base Cast Iron 1 Base Cast Iron
2 Shaft 4140 High Tensile Steel* 2 Shaft 4140 High Tensile Steel*
3 Bearing Assembly Timken (Cast Iron Body) 3 Bearing Assembly Timken (Cast Iron Body)
4 Shaft Sleeve 420 Stainless Steel 4 Shaft Sleeve 420 Stainless Steel
5 Pump Casing Cast Iron 5 Pump Casing Cast Iron
6 Frame Plate Liner 27% Chrome White Iron 6 Frame Plate Liner Insert Rubber
7 Volute Liner 27% Chrome White Iron 7 Cover Plate Liner Rubber
8 Impeller 27% Chrome White Iron 8 Impeller Rubber Coated High Tensile Steel
9 Throat Bush 27% Chrome White Iron 9 Throat Bush Rubber
10 Joint Rings Rubber 10 Cover Plate Cast Iron
11 Cover Plate Cast Iron 11 Stuffing Box Cast Iron
12 Stuffing Box Cast Iron 12 Expeller 27% Chrome White Iron
13 Expeller 27% Chrome White Iron 13 Expeller Ring Natural Rubber
14 Expeller Ring Natural Rubber 14 Bolts Zinc Plated Steel
15 Bolts Zinc Plated Steel 15 O-rings Nitrile Rubber
16 O-rings Nitrile Rubber 16 Seals Rubber
17 Seals Rubber Bolts Zinc Plated Steel
Bolts Zinc Plated Steel
