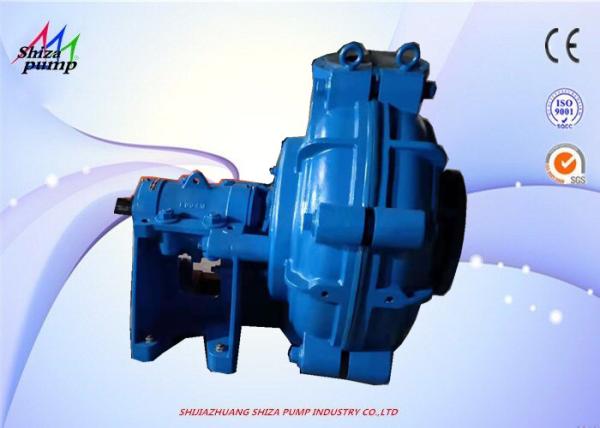

High Pressure Abrasive Heavy Duty Sludge Pump For Coaling Horizontal 6 / 4E -
High Pressure Abrasive Heavy Duty Sludge Pump For Coaling Horizontal 6 / 4E -
Specifications
Brand Name :
SHIZA
Model Number :
6 / 4E -
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
pump Material :
A05
pump colour :
blue/yellowor customized
theory :
centrifugal pump
Original :
China,mainland
model :
6 / 4E -
discrge :
4inch
Description

High Pressure Abrasive Heavy Duty Sludge Pump For Coaling Horizontal 6 / 4E -

Product overview for 6/4E- slurry pump

1. Type (R),HH ,M(R) pumps are cantilevered ,horizontal ,centrifugal slurry pumps.They are designed

for handling abrasive or corrosive slurry in metallurgical ,mining,coal ,power,building

Material and other industrial departments etc.

2. (R),HH are also called heavy duty slurry pumps,are used to transport the strong abrasive high

density or low density high head slurry.Under the allowable pressure.the pumps of this type also can be

installed in multistage series .HH type pump is mainly used for transport low density high head or high

density low abrasive high head slurry.

3. M(R) is a kind of middle slurry pump,used to transport the fine particle size and middle density slurry .

The liner and impeller of model can be changeable and material can be either anti-abrasive metal or rubber .But material of liner and impeller of HH model only can be metal version.Rubber material wet

parts are mainly used for transport the slurry which contains fine ,non-sharp particle size.

The shaft seals for type (R),M(R) and HH pumps can be adoptable of gland seal ,expeller seal and

mechanical seal .

The discharge can be positioned at the intervals of 45 degrees by any eight directions

to suite installations and applications.

Type meaning of 6/4E- slurry pump

Type meaning for mineral centrifugal slurry pump
6/4E-
6 Pump inlet size (inch)
4 Pump outlet size (inch)
E Bracket type
slurry pump
R R-Rubber liner pump

Specification

Model 6/4E-
Allowable Max.Power 120kw
Capacity 162-360m³/h
Head 12-56m
Speed 800-1550r/min
Max.Eff. 65%
NPSH 5-8m
Impeller Dia. 365mm

Structure of slurry pump
