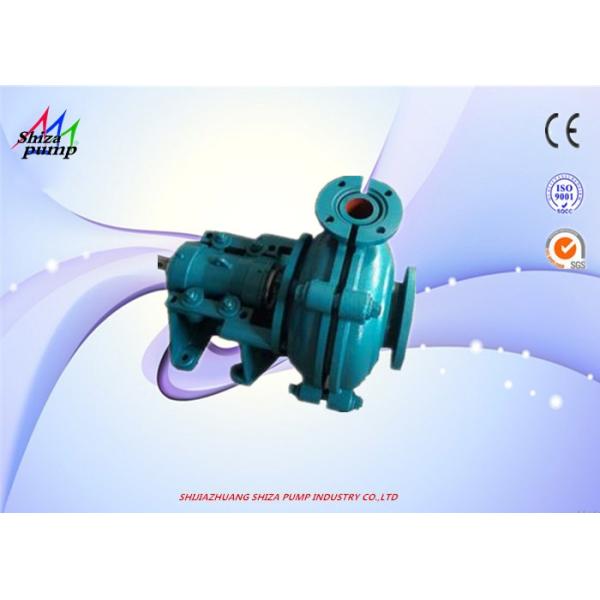

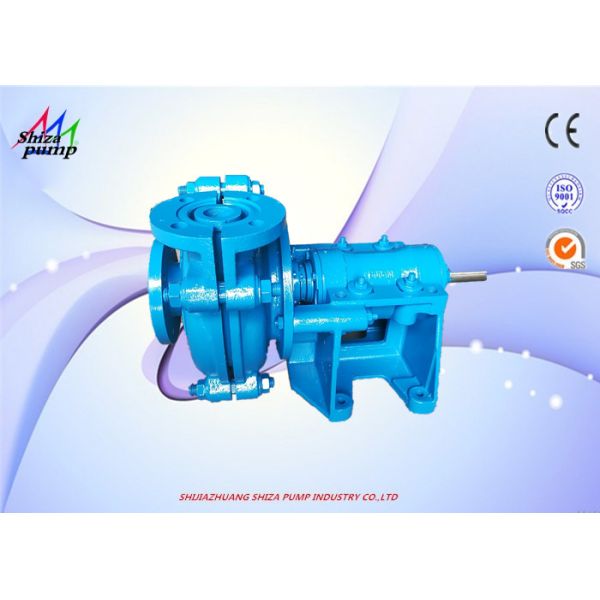

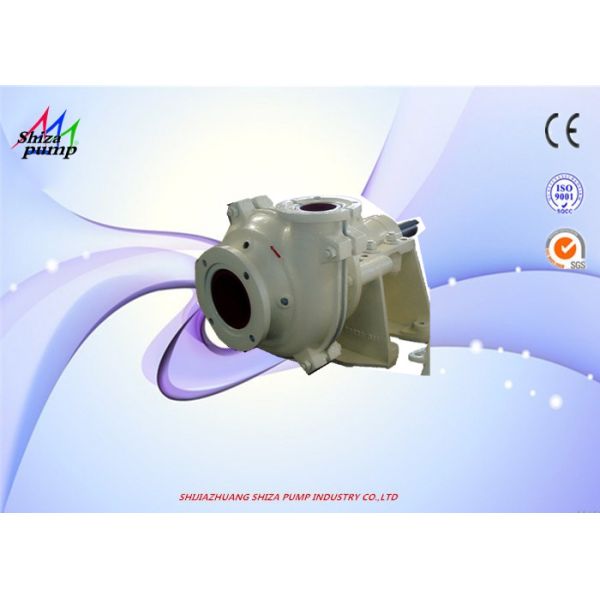

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
Specifications
Brand Name :
SHIZA
Model Number :
4/3 Slurry pump
Certification :
CE, SGS, ISO
Place of Origin :
Shi jia zhuang
MOQ :
1
Price :
USD 2110-2490 /set
Payment Terms :
T/T,
Supply Ability :
1000 sets /three month
Delivery Time :
15
Packaging Details :
Wood box
Colour :
Customized
Hr Head Max :
39 m
Capacity Max :
152m3/Hr
Allowable Max.Power :
22KW
Material :
Iron
Description

3 Inch Slurry Pump serie For Municipal Solid Waste Head 39m high flow low speed

The 4/3C- slurry pump adopts a double-shell structure, and the outer pump casing is generally made of gray iron or ductile iron, which mainly serves as a protection.

The inner volute material is generally high chromium wear resistant alloy (A05) or wear resistant rubber

The impeller is a closed impeller with reasonable design of the flow passage and strong passability.

This pump is a small fractional slurry pump with only one rear guard plate. The front guard plate and the volute are integrated during the casting design.

The pump's spout can be rotated at eight different angles at 45° intervals as needed.

Specification

Model 4/3 C-
Allowable Max.Power 22kw
Capacity Max 152m³/h
Head Max 39m
Speed Max 2200 r/min
Max.Eff. 71%
NPSH 4-6m
Impeller Dia. 245mm



3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed

Main Applications

-Abrasive Slurries
-Coal Preparation
-Mineral Processing
-Aggregate Processing
-Typical Applications
-Chemical Process
-Heavy Minerals
-Paper and Pulp
-Mill Discharge
-Sugar Beet

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed

Tag:

diesel engine driven centrifugal pump,

abrasive slurry pump

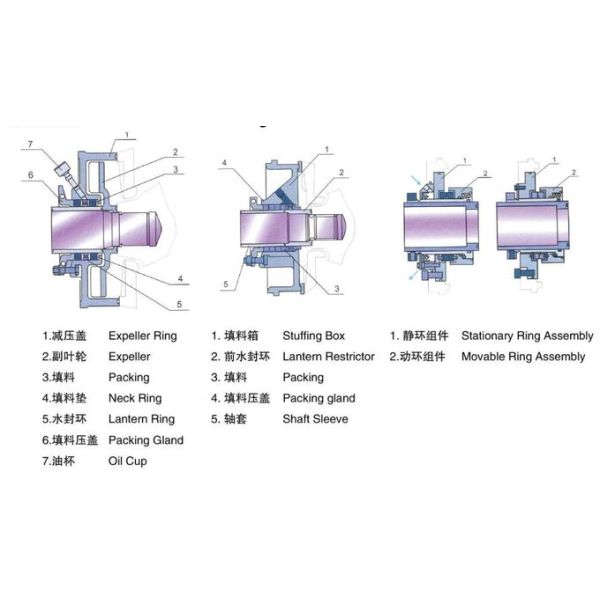

(R)/HH/M(R) Series Slurry Pump Construction Design

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed

3 Inch Slurry Pump Level UP Iron Material For Municipal Solid Waste Head 39m high flow low speed
