8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet
8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet
8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet
8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet
Specifications
Brand Name :
SHIZA
Model Number :
8/6E-
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
A05
Colour :
customized
type :
centrifugal pump for slurry transfer
MOQ :
1 set
location :
China,hebei
pump model :
8/6E-
Inlet :
8inch
outlet :
6inch
bracket type :
E bracket for pump
Pump type :
slurry pump
Description

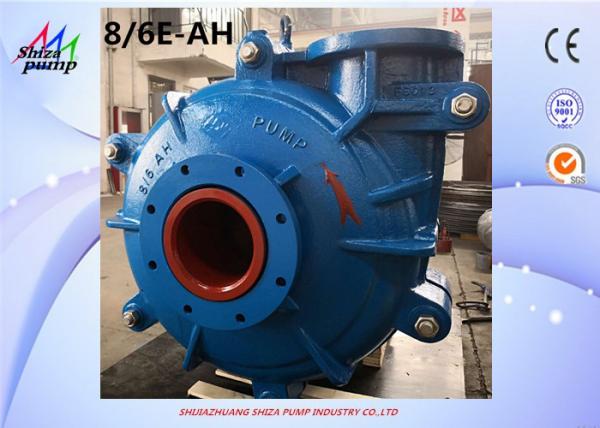

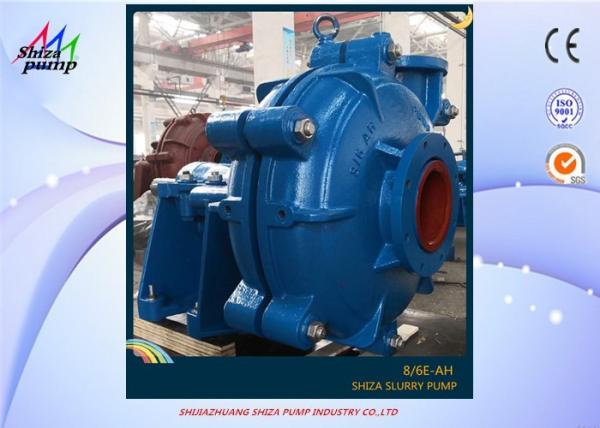

8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet

Product overview

slurry pump 8/6E- is a cantilever, horizontal centrifugal slurry pump. It is suitable for conveying strong abrasion and high concentration slurry in metallurgy, mining, coal, electric power, building materials and other industrial sectors. This type of pump can also be used in multiple stages in series.

The series is called a heavy duty slurry pump. Because the pump has a thick grinding member and a heavy-duty bracket, it is suitable for conveying strong abrasion, high concentration slurry or low concentration high lift slurry.
The pump body of the type slurry pump has a replaceable wear-resistant metal lining or rubber lining, and the impeller is made of wear-resistant metal or rubber material. The pump's spout position can be rotated at eight different angles at 45° intervals as needed.

slurry pump 8/6E- is double pump housing structure, pump body and pump cover with replaceable metal lining or rubber lining, the lining can be used until wear-through No need to replace, extend the maintenance cycle and reduce operating costs.

Product Introduction:

8/6E- is heavy duty type centrifugal slurry pump, the capacity is 360-828m3/h with 10-61m head.

The hydraulic wet end consists of three components: a shell or casing, a impeller and a suction plate/liner to permit easy removal for maintenance and inspections.

Type meaning

Type meaning for mineral centrifugal slurry pump

8/6E-
8 Pump inlet size (inch )
6 Pump outlet size (inch)
E Bracket type
slurry pump
R R-Rubber liner pump

Performance table

MODEL ALLOWABLE MATING
MAX.POWER
(KW)		 MATERIAL CLEAN WATER PERFORANCE IMPELLER
LINER IMPELLER Q Capacity H Head Speed Max. Eff. NPSH VANES NO. IMPELLER DIA
m3/h L/s (m) n(r/min) (%) (m) (mm)
1.5/1B- 15 M M 12.6-28.8 3.5-8 6-68 1200-3800 40 2--4 5 152
RU RU 10.8-25.2 3--7 7-52 1400-3400 30 3
1.5/1C-HH 30 M M 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
2/1.5B- 15 M M 32.4-72 9--20 6-58 1200-3200 45 3.5-8 5 184
RU RU 25.2-54 7--15 5.5--41 1000-2600 50 2.5-5 5 178
3/2C- 30 M M 39.6-86.4 11--24 12-64 1300-2700 55 4--6 5 214
RU RU 36-75.6 10--21 13-46 1300-2300 60 2--4 5 213
3/2D-HH 60 M M 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 5 457
4/3C- 30 M M 86.4-198 24-55 9-52 1000-2200 71 4--6 5 245
RU RU 79.2-180 22-50 5-34.5 800-1800 59 3--5
4/3E-HH 120 M M 126-252 35-70 12-97 600-1400 50 2--5 5 508
6/4D- 60 M M 162-360 45-100 12-56 800-1550 65 5--8 5 365
RU RU 144-324 40-90 12-45 800-1350 65 3--5 5 365
6/4S-HH 560 M M 324-720 90-200 30-118 600-1000 64 3-8 5 711
8/6S-HH 560 M M 468-1008 130-280 20-94 500-1000 65 4-12 5 711
8/6R- 300 M M 360-828 100-230 10-61 500-1140 72 2-9 5 510
RU RU 324-720 90-200 7-49 400-1000 65 5-10 5 510
10/8E-M 120 M M 666-1440 185-400 14-60 600-1100 73 4-10 5 549
10/8ST- 560 M M 612-1368 170-380 11-61 400-850 71 4-10 5 686
RU RU 540-1118 150-330 12-50 400-750 75 4-12
12/10ST- 560 M M 936-1980 260-550 7-68 300-800 82 6 5 762
RU RU 720-1620 200-450 7-45 300-650 80 2.5-7.5
14/12ST- 560 M M 1260-2772 350-770 13-63 300-600 77 3-8 5 965
RU RU 1152-2520 320-700 13-44 300-500 79 3-10
16/14TU- 1200 M M 1368-3060 380-850 11-63 250-550 79 4-10 5 1067
20/18TU- 1200 M M 2520-5400 700-1500 13-57 200-400 85 5-10 5 1370


Construction Design

8 / 6E - Copper Mine Slurry Pump , Dry Sand Pump With 8 Inch Inlet
