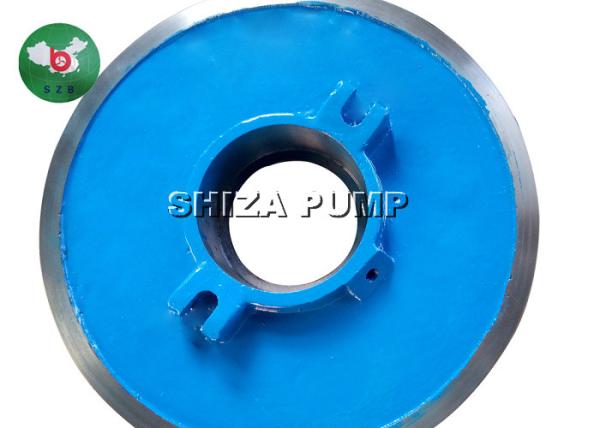

A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger
Specifications
Brand Name :
SHIZA
Model Number :
G or GH
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Supply Ability :
300 sets monthly
Packaging Details :
wooden case
Name :
DG4041 Horizontal A07 A49
Pump model :
14/12G-G(H)
Pump material :
High chrome A05
Original :
China
Usages :
For dredger use
Type :
Centrifugal horizontal
Description

A07 Horizontal Slurry Pump Parts,River Sand Pump Wear Parts For Boat Dredger

Gravel pump spare parts material :

High chrome alloy: A05, A07, A49, etc.

Natural rubber: R08, R26, R33, R55, etc.

Other materials can be supplied as requirements .

Main parts name

Casting, shaft, throat bush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor,

cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner ,neck ring, expeller ring,expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller,closed impeller, open impeller

OEM Service

We also provide OEM service according to customer's special requirements .

Here we list some OEM part codes for reference:

Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...

05 Chemical Composition:

C(%) Cr(%) Mn(%) Si(%) Ni(%) Mo(%) S(%) P(%)
2.8-3.2 24-26 0.8-1.2 0.5-0.8 0.8-1.2 0.8-1.2 0.05Max 0.07Max

G(H) gravel pump material list for parts:

PUMP PARTS LIST
Part Name Material Specification HRC Application OEM Code
Liners & impellers Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc. A33
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Shaft Metal Carbon steel E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 C21
304 SS C22
316 SS C23
Joint rings & seals Rubber Butyl S21
EPDM rubber S01
Nitrile S10
Hypalon S31
Neoprene S44/S42
Viton S50

Performance table:

Pump Model Allowable Clear Water Performance
Max. Power Capacity Q Head Speed Max.Eff. Impeller. Dia. (mm)
(kw) m3/h H (m) n(r/min) (%)
6/4D-G 60 36-250 5-52 600-1400 58 378
8/6E-G 120 126-576 6-45 800-1400 60 378
10/8S-G 560 216-936 8-52 500-1000 65 533
10/8F-G 260 216-936 8-52 500-1000 65 533
10/8S-GH 560 180-1440 24-80 500-950 72 711
12/10F-G 260 360-1440 10-60 400-850 65 667
12/10G-G 600 360-1440 10-60 400-850 65 667
12/10G-GH 600 288-2808 16-80 350-700 73 950
14/12G-G 600 576-3024 8-70 300-700 68 864
16/14G-G 600 720-3600 18-44 300-500 70 1016
16/14TU-G 1200 324-3600 26-70 300-500 72 1270
18/16G-G 600 720-4320 12-48 250-500 72 1067
18/16TU-G 1200 720-4320 12-48 250-500 72 1067
