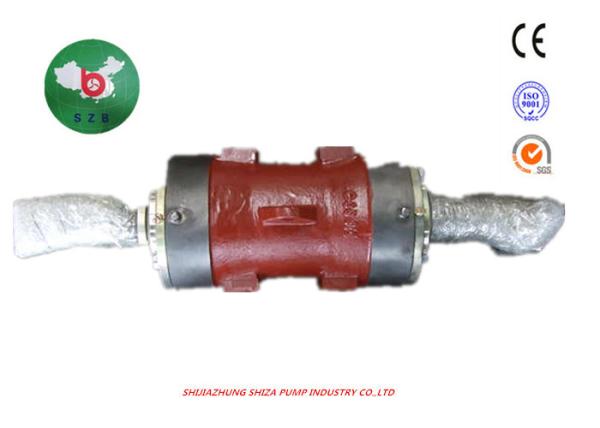

Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Slurry Pump Rubber Centrifugal Pump Impeller By Bearing Assembly / Shaft Sleeve
Specifications
Brand Name :
SHIZA
Model Number :
8/6E-
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
27%chrome alloy A05
Color :
slurry pump impeller FAM8147
part name :
impeller
MOQ :
1 set
Original :
China
Pump type :
R slurry pump
Description

Slurry Pump replaceable Spare parts rubber Impeller,slurry pump spare parts/bearing assembly/shaft sleeve/impeller

1. Pump Casing
Split outer casing design with cast or ductile iron with the wearing liners , which can provide high

operating pressure capabilities.
2. Impeller
The impeller may be either molded elastomer or hard metal. Cast-iron impeller threads are better

suited for slurries.
3. Interchangeable Hard Metal and Moulded Elastomer Liners
4. Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow

com ponents to be easily removed or replacement.
5. Impeller The impeller may be either molded elastomer or hard metal. Cast-iron impeller threads

are better suited for slurries.
6. Hydraulic seal rings give positive sealing between mating faces

Warma slurry pump parts code:

-tell me the standard code no .we can quote you price immediately :

B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,

EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,

GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...

Pump replaced parts material:

1) Material: D21, G01, A05...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316, PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,

S50, U01, EPDM, PU, CR...

Structure of slurry pump

No. Name Material
1 Impeller High-chrome alloy
Natural Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Natural Rubber
4 Rear liner plate High-chrome alloy
Natural Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching and high temprature tempering
10 Bearing housing Gray Iron
11 Expeller ring High-chrome alloy
Natural Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray Iron
15 Support QT500-7

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted
