Specifications
Brand Name :
SHIZA
Model Number :
8/6E-
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Colour :
Single Stage Process Chemical Slurry PumpThroatbush
Type :
Cover Plate
MOQ :
1 piece part
Location :
China
Bracket type :
E bracket for pump
Pump type :
R GH SP
Description

Single Stage Chemical Pump Parts Throatbush Rubber / Metal Liner Inclued

1. SHIZA brand slurry pump spare parts are made of high chromium alloy A05 which has superior wear

and corrosive resistance as well as rubber liners parts made of high quality natrual rubber to

transport the medium with light abrasion and non-sharp solids liquid and have small corrosive liquid.


2. We do non-standard chrome allory material or rubber parts OEM .

slurry pump parts code:

-tell me the standard code no .we can quote you price immediately :

B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,

EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,

GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...

Pump replaced parts material:

1) Material: D21, G01, A05...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316, PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,

S50, U01, EPDM, PU, CR...

Structure of slurry pump

No. Name Material
1 Impeller High-chrome alloy
Natural Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Natural Rubber
4 Rear liner plate High-chrome alloy
Natural Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching and high temprature tempering
10 Bearing housing Gray Iron
11 Expeller ring High-chrome alloy
Natural Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray Iron
15 Support QT500-7

Spare parts materials

NO. Name code Regular material Alternational materials

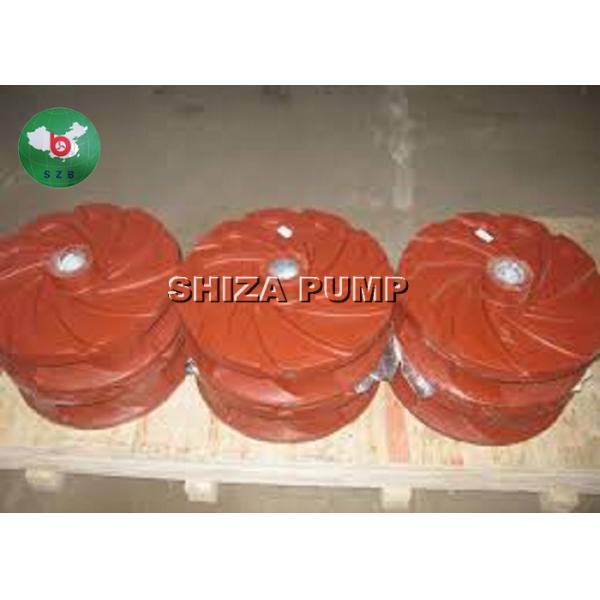

1 Impeller A05(Cr27) A49,Rubber,304,316

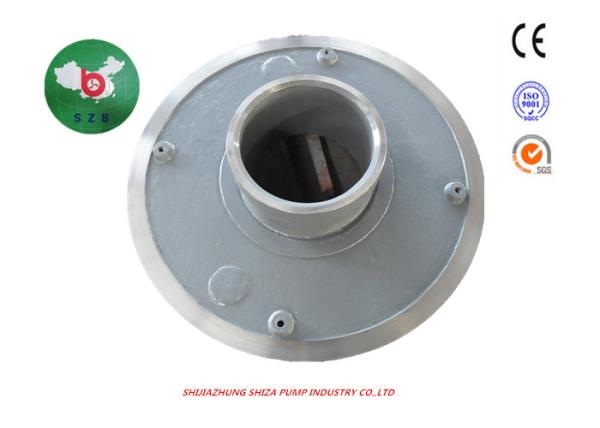

2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted

Data sheet

Sand pump Detail Power
(KW)		 Weight/kg
Flow Head
(m)		 Speed
(rpm)		 Metal
m3/h
6/4 36-252 7-51 600-1400 52 460
8/6 133-576 10-48 800-1400 88 1120
10/8 216-930 11-44 500-940 147 2285
12/10 360-1512 11-58 400-850 305 4450
14/12 522-3168 9.5-66 300-700 643 5400
12/10H 612-2232 28-77 450-700 558 4638

.

Single Stage Chemical Pump Parts Throatbush Rubber / Metal Liner Inclued
