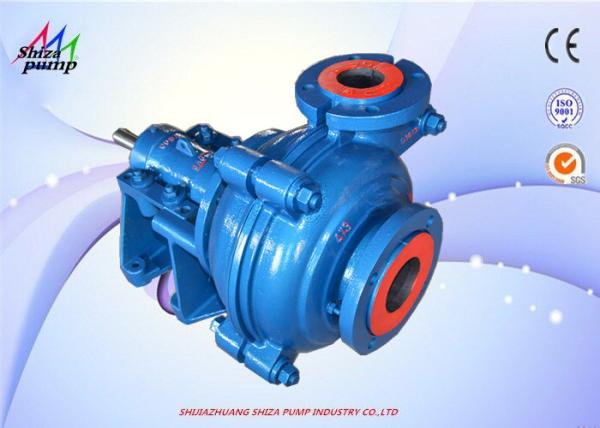

Replaced Single Stage 4 / 3E-HH High Head Centrifugal Slurry Pump
Replaced Single Stage 4 / 3E-HH High Head Centrifugal Slurry Pump
Specifications
Brand Name :
SHIZA
Model Number :
4/3E-HH
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
metal or rubber liner
Structure :
horizontal impeller pump
Name of pump :
4/3E-HH High Head Centrifugal Slurry Pump
MOQ :
Diesel / Electric
Theory :
centrifugal pumps for mining use
Model :
4/3E-HH
Inlet :
4inch
Outlet :
3inch
From :
China
Transmission :
ZVz/CRz/CV/DC
Description

Replaced Single Stage 4 / 3E-HH High Head Centrifugal Slurry Pump

Product overview

1. All of the metal wet parts can are made of high chromium alloy which has superior wear and erosion

resistance or grey iron which has a high rigidity.

2. As the expeller ring is assembled together with the expeller, much pressure can be reduced

effectively for the impeller. Meanwhile, it can still maintain a reliable sealing performance.

3. The parts such as labyrinth, labyrinth locknut, end cover and shaft sleeve are used for bearing

assembly; these parts can be changed easily and have high accuracy and longer service life.

4. Some fastening parts such as studs and bolts can be used for fixing the other parts securely. All the

fastening parts can be attached easily, ensuring the safety.

5. All of the rubber parts have superior erosion resisting performance which can be used for a long life.

Type meaning

Type meaning for mineral centrifugal slurry pump
4/3E-HH slurry pump
4 Pump inlet size (inch)
3 Pump outlet size (inch)
E Bracket type
HH HH slurry pump
R R-Rubber liner pump

Pump range: 25mm to 450mm (1’’ to 18’’)

Capacity: 4-5400m3/h

Head: 5-118m

Wet part material commonly is 27Cr white iron alloy or rubber

Other material can be produced as per your specific application

Performance table of mining centrifugal slurry pump

MODEL ALLOWABLE MATING
MAX.POWER
(KW)		 MATERIAL CLEAN WATER PERFORANCE IMPELLER
LINER IMPELLER Q Capacity H Head Speed Max. Eff. NPSH VANES NO. IMPELLER DIA
m3/h L/s (m) n(r/min) (%) (m) (mm)
1.5/B- 15 M M 12.6-28.8 3.5-8 6-68 1200-3800 40 2--4 5 152
RU RU 10.8-25.2 3--7 7-52 1400-3400 30 3
1/1.5B- 15 M M 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
2/1.5B- 15 M M 32.4-72 9--20 6-58 1200-3200 45 3.5-8 5 184
RU RU 25.2-54 7--15 5.5--41 1000-2600 50 2.5-5 5 178
3/2C- 30 M M 39.6-86.4 11--24 12-64 1300-2700 55 4--6 5 214
RU RU 36-75.6 10--21 13-46 1300-2300 60 2--4 5 213
3/2D-HH 60 M M 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 5 457
4/3C- 30 M M 86.4-198 24-55 9-52 1000-2200 71 4--6 5 245
RU RU 79.2-180 22-50 5-34.5 800-1800 59 3--5
4/3E-HH 120 M M 126-252 35-70 12-97 600-1400 50 2--5 5 508
6/D- 60 M M 162-360 40-100 12-56 800-1550 65 5--8 5 365
RU RU 144-324 40-90 12-45 800-1350 65 3--5 5 365
6/4S-HH 560 M M 324-720 90-200 30-118 600-1000 64 3-8 5 711
6S-HH 560 M M 468-1008 130-280 20-94 500-1000 65 4-12 5 711
8/6E- 300 M M 360-828 100-230 10-61 500-1140 72 2-9 5 510
RU RU 324-720 90-200 7-49 400-1000 65 5-10 5 510
10/8E-M 120 M M 666-1440 185-400 14-60 600-1100 73 4-10 5 549
10/8ST- 560 M M 612-1368 170-380 11-61 400-850 71 4-10 5 686
RU RU 540-1118 150-330 12-50 400-750 75 4-12
12/10ST- 560 M M 936-1980 260-550 7-68 300-800 82 6 5 762
RU RU 720-1620 200-450 7-45 300-650 80 2.5-7.5
14/12ST- 560 M M 1260-2772 350-770 13-63 300-600 77 3-8 5 965
RU RU 1152-2520 320-700 13-44 300-500 79 3-10
16/14TU- 1200 M M 1368-3060 380-850 11-63 250-550 79 4-10 5 1067
20/18TU- 1200 M M 2520-5400 700-1500 13-57 200-400 85 5-10 5 1370

Selection & Performance Chart

Replaced Single Stage 4 / 3E-HH High Head Centrifugal Slurry Pump
