2 / 1.5B - R Rubber Wear-Resistant Centrifugal Slurry Pump For Power Plant
2 / 1.5B - R Rubber Wear-Resistant Centrifugal Slurry Pump For Power Plant
Specifications
Brand Name :
SHIZA
Model Number :
2 / 1.5B - R
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Power :
15 kw
Useage :
Power Plant
Voltage :
380V
MOQ :
1 set
pump model :
2/1.5B-R
Pressure :
Middle Pressure Pump
Description

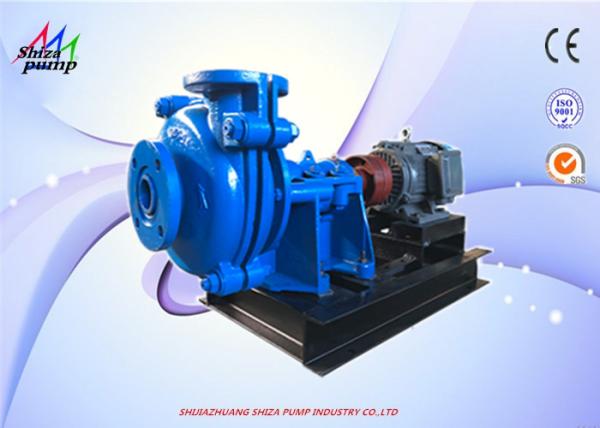

2 / 1.5B - R Rubber Wear-Resistant Centrifugal Slurry Pump For Power Plant

Product overview

2 / 1.5B - R slurry pump is composed of impeller and casing. Strictly speaking, it belongs to centrifugal pump. It is mainly used in electric power to transport slurry containing corrosive solid particles. In the chemical industry, some corrosive slurries containing crystals are also transported.

It has replaceable rubber lining, and the impeller is made of rubber material. Shaft seals can be packing seal or mechanical seal. Pump outlet position can be installed and used according to the need at 45 C interval, rotating eight different angles.

Application

The main power plants are thermal power generation and hydroelectric power generation. In thermal power plants, due to the use of a large number of coal-fired power generation, the slag or ash after coal-fired needs to be removed. Slurry pump is used to remove ash and slag. After the slag is mixed with a certain amount of water, it is transported to the place where ash and slag are piled up by slurry pump, so sometimes the slurry pump also becomes a slag pump in power plants.

Type meaning

Type meaning for mineral centrifugal slurry pump

2/1.5B-R
2 Pump inlet size (inch )
1.5 Pump outlet size (inch)
B Bracket type
slurry pump
R R-Rubber liner pump

Performance table

MODEL ALLOWABLE MATING
MAX.POWER
(KW)		 MATERIAL CLEAN WATER PERFORANCE IMPELLER
LINER IMPELLER Q Capacity H Head Speed Max. Eff. NPSH VANES NO. IMPELLER DIA
m3/h L/s (m) n(r/min) (%) (m) (mm)
1.5/1B- 15 M M 12.6-28.8 3.5-8 6-68 1200-3800 40 2--4 5 152
RU RU 10.8-25.2 3--7 7-52 1400-3400 30 3
1.5/1C-HH 30 M M 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
2/1.5B- 15 M M 32.4-72 9--20 6-58 1200-3200 45 3.5-8 5 184
RU RU 25.2-54 7--15 5.5--41 1000-2600 50 2.5-5 5 178
3/2C- 30 M M 39.6-86.4 11--24 12-64 1300-2700 55 4--6 5 214
RU RU 36-75.6 10--21 13-46 1300-2300 60 2--4 5 213
3/2D-HH 60 M M 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 5 457
4/3C- 30 M M 86.4-198 24-55 9-52 1000-2200 71 4--6 5 245
RU RU 79.2-180 22-50 5-34.5 800-1800 59 3--5
4/3E-HH 120 M M 126-252 35-70 12-97 600-1400 50 2--5 5 508
6/4D- 60 M M 162-360 45-100 12-56 800-1550 65 5--8 5 365
RU RU 144-324 40-90 12-45 800-1350 65 3--5 5 365
6/4S-HH 560 M M 324-720 90-200 30-118 600-1000 64 3-8 5 711
8/6S-HH 560 M M 468-1008 130-280 20-94 500-1000 65 4-12 5 711
8/6R- 300 M M 360-828 100-230 10-61 500-1140 72 2-9 5 510
RU RU 324-720 90-200 7-49 400-1000 65 5-10 5 510
10/8E-M 120 M M 666-1440 185-400 14-60 600-1100 73 4-10 5 549
10/8ST- 560 M M 612-1368 170-380 11-61 400-850 71 4-10 5 686
RU RU 540-1118 150-330 12-50 400-750 75 4-12
12/10ST- 560 M M 936-1980 260-550 7-68 300-800 82 6 5 762
RU RU 720-1620 200-450 7-45 300-650 80 2.5-7.5
14/12ST- 560 M M 1260-2772 350-770 13-63 300-600 77 3-8 5 965
RU RU 1152-2520 320-700 13-44 300-500 79 3-10
16/14TU- 1200 M M 1368-3060 380-850 11-63 250-550 79 4-10 5 1067
20/18TU- 1200 M M 2520-5400 700-1500 13-57 200-400 85 5-10 5 1370


Construction Design

2 / 1.5B - R Rubber Wear-Resistant Centrifugal Slurry Pump For Power Plant
