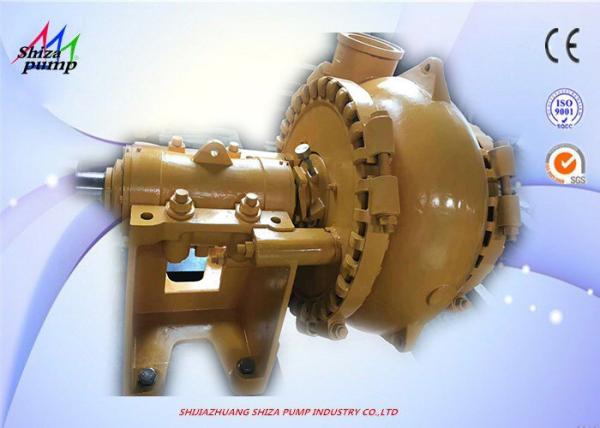

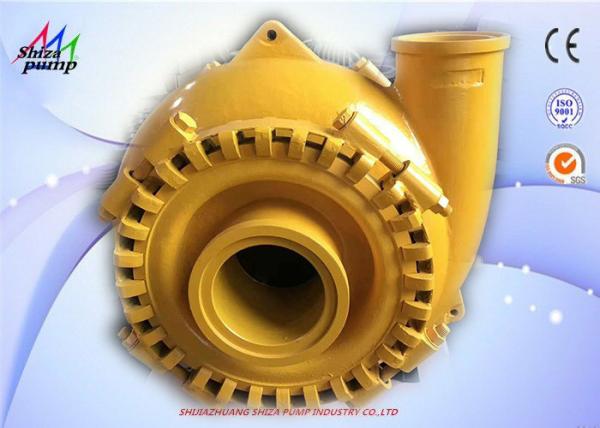

6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed
6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed
6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed
6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed
Specifications
Brand Name :
Shiza
Model Number :
6/4D-G
Place of Origin :
China
Certification :
IOS
MOQ :
1 set
Price :
Based on quantity
Payment Terms :
T/T
Supply Ability :
200 sets monthly
Delivery Time :
10 work days
Packaging Details :
wooden case
Model :
6/4D-G
Capacity :
36-250m³/h
Head :
5-52m
Speed :
600-1400r/min
NPSH :
2.5-3.5m
Impeller :
378mm
Description

6/4D-G Single Casing Wide Wet-Passage Good Performance Of NPSH And Abrasion-Resistance Gravel Pump

Gravel pumps can be used to transport large abrasive abrasives with large particles.This series of gravel pumps are mainly horizontal and single pump casings.The wet-parts are made of hard nickel, high chromium and other wear resistant materials.The discharge direction of pump can be oriented in any direction of 360.

The pump has a wide performance range, good cavitation performance and high efficiency. Multi-stage series technology can be used to meet long-distance transportation. The flow-through components are available in a variety of metals and add depth. With a variety of speeds and a variety of variations, the pump operates under the mine. Long service life and high operating efficiency can meet a variety of harsh conveying conditions.

The shaft seal form of the gravel pump has packing seal, impeller seal, mechanical seal.

Transmission mode mainly includes V-type V-belt drive, flexible coupling drive, gear reducer drive, hydraulic coupling drive, variable frequency drive, thyristor speed control, etc.

It is suitable for dredging, sifting gravel, dredging rivers, mining and metal smelting and blasting.

6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed

6/4D-G Sand Gravel Pump Single Casing Wide Wet - Passage 600-1400r/Min Speed
