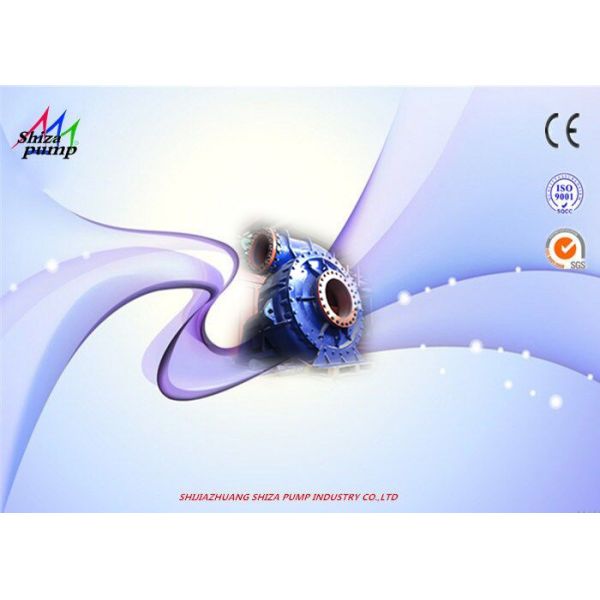

Single Suction Cantilever Horizontal Dredge Pump 450WN 3200-3850m³/H Capacity
Single Suction Cantilever Horizontal Dredge Pump 450WN 3200-3850m³/H Capacity
Specifications
Brand Name :
SHIZA
Model Number :
450WN
Certification :
IOS
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15-20 work days
Packaging Details :
wooden case
model :
450WN
capacity :
3200-3850m³/h
head :
40-67m
speed :
350-500r/min
NPSHr :
<4.5m
color :
Customer Specifications
Description

450WN Single Stage Single Suction Cantilever Horizontal Dredge Pump

Product description:

WN dredging pump is a kind of highly effective wear-resistant marine dredging pump,which is based on absorption of abroad technology.WN dredging pump meets the comprehensive dredging requirement at home and abroad.

This type of dredging pump adopts single pump casing or double pump casing, single-stage, single-suction cantilever horizontal structure.

Performance:

1.Good cavitation

2.High flow capacity and wide applicability

3.Sharp Dropping performance curve

4.Achieving rious blendings of pump performance

Among the over-flow components of the dredging pump, the impeller, the sheath, the front and rear guard plates (wear-resistant lining) are made of strong anti-wear alloy cast iron, the hardness is not less than 58HRC, and it has a strong impact resistance and a high degree. Anti-abrasive performance.

In the product design process, the life of the components is fully matched, and the replacement period of the wear parts is basically the same, which reduces the maintenance and replacement costs. Low hydraulic loss, high efficiency, low power consumption: Due to the advanced hydraulic model, the efficiency of the dredging pump is high.

Specifications:

NPSHr <4.5m
Capacity 3200-3850m³/h
Head 40-67m
Speed 350-500r/min
Inlet Diameter 600mm
Outlet Diameter 450mm

Single Suction Cantilever Horizontal Dredge Pump 450WN 3200-3850m³/H Capacity

Single Suction Cantilever Horizontal Dredge Pump 450WN 3200-3850m³/H Capacity
