12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging
12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging
Specifications
Brand Name :
SHIZA
Model Number :
12 / 10 G-G
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Supply Ability :
300sets monthly
Packaging Details :
wooden case
Pump material :
High chrome A05
original :
China
theory :
Single Suction Large Flow Sand Gravel Pump
impeller :
Closed pump
Suction Diameter :
12 Inch
Discharge Diameter :
10 Inch
Application :
Sewage,mining,Sand Pump
Fuel :
Diesel,Electric
Pressure :
Normal
Feature :
High Efficiency,Large passage
Motor :
diesel or electric motor
Seal :
Mechanical Seal,Gland Seal
Description
12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging, Dredging Rivers

Product Introduction

The G Series Single Suction Large Flow Sand Gravel Pump is a horizontal, single pump shell centrifugal slurry pump. The pump clamp and the pump cover are clamped by special clamps. The discharge direction of the pump can be installed at any position of 360 degrees.


The 12 / 10 G-G Single Suction Large Flow Sand Gravel Pump is made of high-hardness wear-resistant alloy cast iron, KmTBCr26, which can be adjusted according to industrial and mining conditions.

The12 / 10 G-G Single Suction Large Flow Sand Gravel Pump has a wide flow path, good cavitation performance, high efficiency and wear resistance. It is mainly used for continuous conveying of strong abrasive materials that cannot be transported due to the large size of the slurry.

The 12 / 10 G-G Single Suction Large Flow Sand Gravel Pump is suitable for dredging, sand absorbing, dredging, river sand mining and metal smelting.

Application fields

1. Draining sand from rivers, lakes, seas and reservoirs, reclaiming land from the sea, extracting iron ore, and scouring sand.

2. It is suitable for extracting a variety of yellow sand, mineral sand, industrial and mining enterprises to transport tailings slurry, tailing sand mine, slurry, slag, electric fly ash transport and other strong abrasive media.

3. It is widely used in pebble and large particles, and has a large environment for pump over-current capability: river, lake, sea, reservoir, sand pumping, large particles, river dredging, high lift and other construction environments, suitable for dredging Mud, shale, pebbles, mining and metal smelting waste transportation.

Type meaning for dredge pump

12/10G-G(H)

12----------------Suction Diameter (inch )

10----------------Discharge Diameter (inch)

G-----------------Support Type

G-----------------Pump Model

H-----------------Gravel Pump High Head

G(H) gravel pump material list for parts:

Part Name Material Specification HRC Application OEM Code
Bowl, door, back liner & impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuriation installation with pH not less than 4 A49
AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc. A33
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Door clamp plate, bearing house & base Metal Grey iron G01
Ductile iron D21
Shaft Metal Carbon steel E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 C21
304 SS C22
316 SS C23
Joint rings & seals Rubber Butyl S21
EPDM rubber S01
Nitrile S10
Hypalon S31
Neoprene S44/S42
Viton S50

Performance table:

Pump Model Allowable Clear Water Performance
Max. Power Capacity Q Head Speed Max.Eff. Impeller. Dia. (mm)
(kw) m3/h H (m) n(r/min) (%)
6/4D-G 60 36-250 5-52 600-1400 58 378
8/6E-G 120 126-576 6-45 800-1400 60 378
10/8S-G 560 216-936 8-52 500-1000 65 533
10/8F-G 260 216-936 8-52 500-1000 65 533
10/8S-GH 560 180-1440 24-80 500-950 72 711
12/10F-G 260 360-1440 10-60 400-850 65 667
12/10G-G 600 360-1440 10-60 400-850 65 667
12/10G-GH 600 288-2808 16-80 350-700 73 950
14/12G-G 600 576-3024 8-70 300-700 68 864
16/14G-G 600 720-3600 18-44 300-500 70 1016
16/14TU-G 1200 324-3600 26-70 300-500 72 1270
18/16G-G 600 720-4320 12-48 250-500 72 1067
18/16TU-G 1200 720-4320 12-48 250-500 72 1067

Construction Drawing

12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging

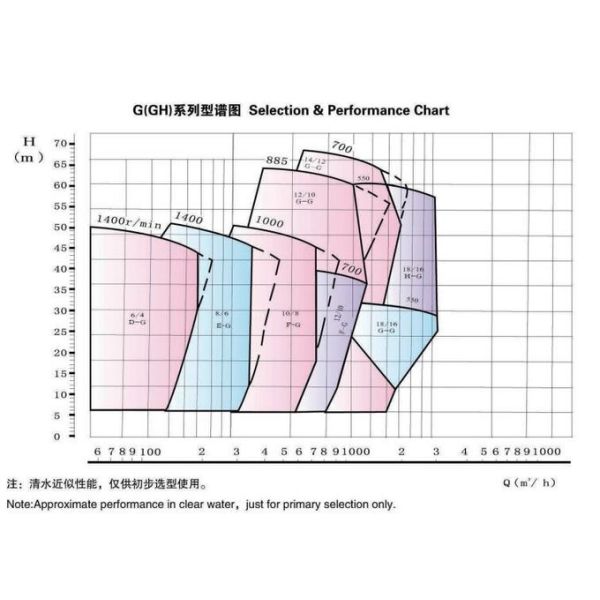

Selection ＆ Performance Chart

12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging

Main features

All our Gravel Pumps be designed and manufactured by International Standard, ensuring our pump has longer service life, higher performance, ease of operation and maintenance.

(1). compact structure

(2). convenient operation

(3). stable operation

(4). easy maintenance

(5). high efficiency

(6). long service life

(7). delivery big size particle

(8). keep delivering extremely corrosive liquid or slurries for long time

(9).super big capacity delivery

12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging12 / 10 G-G Single Suction Large Flow Sand Gravel Pump For Dredger Dredging
