LC65 - 35 Metal Frame Plate , Interchangeable Spare Parts For Acidic Slurry
LC65 - 35 Metal Frame Plate , Interchangeable Spare Parts For Acidic Slurry
Specifications
Brand Name :
SHIZA
Model Number :
LC65-35
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
3000sets monthly
Delivery Time :
7days
Packaging Details :
wooden case
Material :
chrome alloy A05
Color :
customized
Name :
cover plate and frame plate
Advantage :
Interchangeable
Description

LC65 - 35 Metal Frame Plate ,Interchangeable Spare Parts For Acidic Slurry

Features:

The pump body is volute-shaped, which encloses the impeller in a certain space, transports liquid, and more importantly converts the kinetic energy of the liquid into static pressure energy, so it is also an energy conversion device.


Main applications :

This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

Warman slurry pump parts code:

-tell me the standard code no .we can quote you price immediately.

All of the pump and spare parts can be customized as your application .We provide design and OEM service.

Materials Offered:

-High Chrome Cast Iron
-Ductile Iron
-Stainless Steel
-Natural Rubber
-Specific Rubber
-Polyurethane

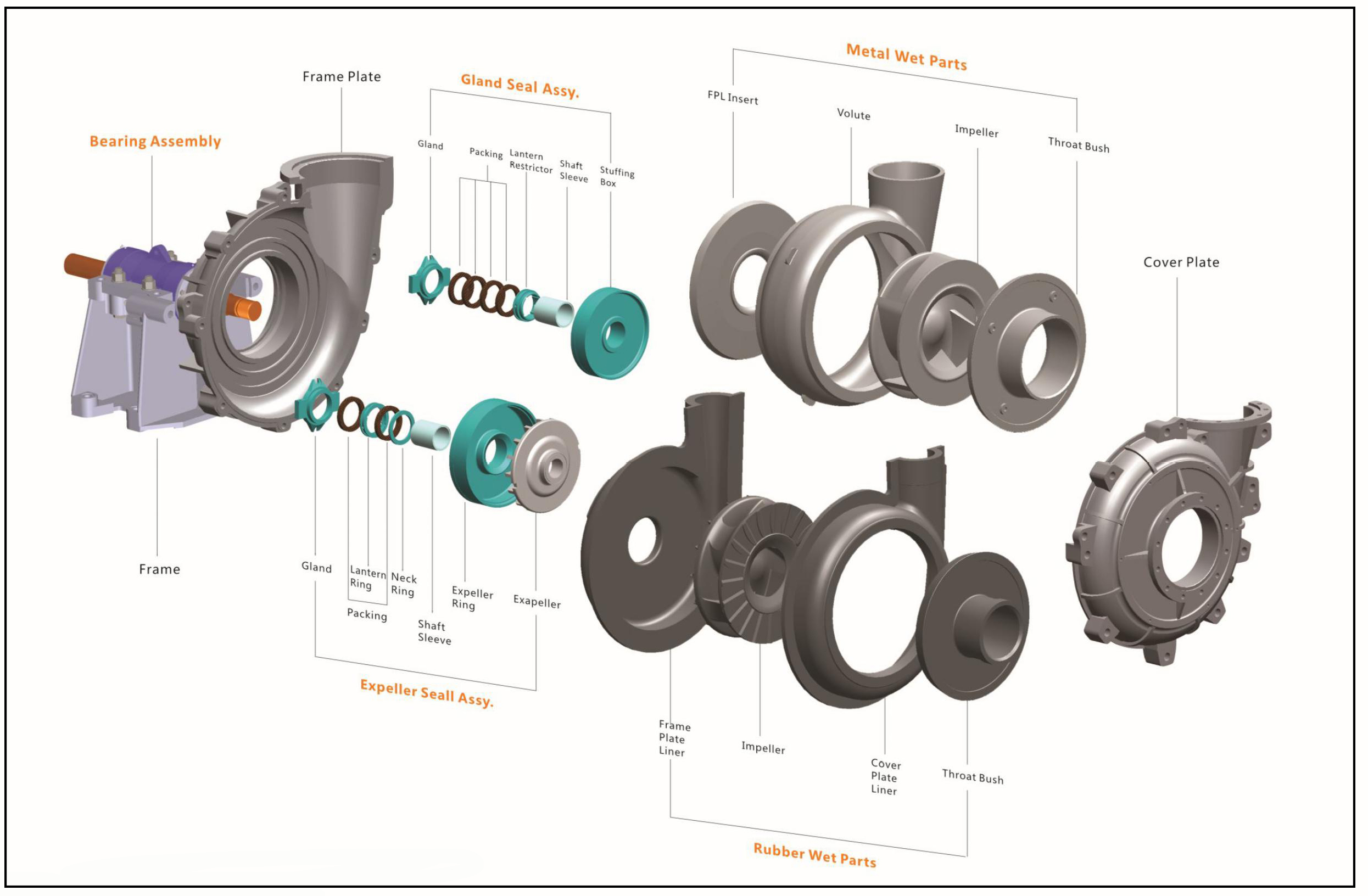

Structure of slurry pump

LC65 - 35 Metal Frame Plate , Interchangeable Spare Parts For Acidic Slurry

No. Name Material
1 Impeller High-chrome alloy
Natural Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Natural Rubber
4 Rear liner plate High-chrome alloy
Natural Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching and high temprature tempering
10 Bearing housing Gray Iron
11 Expeller ring High-chrome alloy
Natural Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray Iron
15 Support QT500-7

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted

Application
