Sand And gravel Pump Type 8 - 6E - G, Gravel Suction Pump, Import Diameter 200MM
Sand And gravel Pump Type 8 - 6E - G, Gravel Suction Pump, Import Diameter 200MM
Specifications
Brand Name :
SHIZA
Model Number :
GH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Supply Ability :
100sets monthly
Delivery Time :
30 work days
Packaging Details :
wooden case
Name :
Sand Gravel centrifugal pump
Model :
8/6E-G model Sand Gravel centrifugal pump
Pump inlet :
8inch
Pump outlet :
6inch
Pump material :
High chrome A05 alloy
From :
Hebei,China
Voltage :
380V and above
Application :
Sewage,mining,slurry,Sand Pump
Motor :
diesel or electric motor
Seal :
Mechanical Seal,Gland Seal
Description
Sand And gravel Pump Type 8 - 6E - G, Gravel Suction Pump, Import Diameter 200MM

Overview

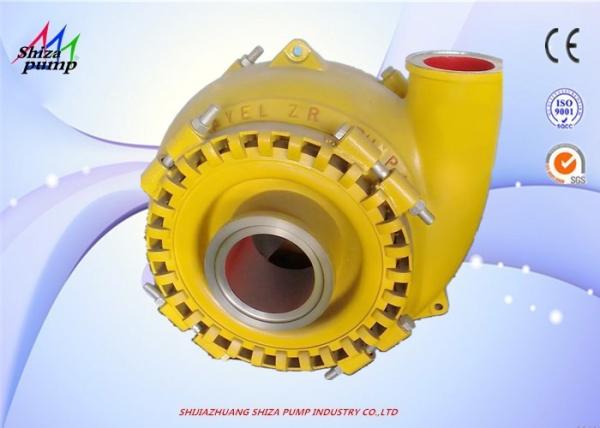

8-6E-G is a type of G (GH) series Sand and gravel pump, Its inlet diameter is 200MM and the outlet diameter is 150MM, It is a small and medium-sized Sand and gravel pump in this series of pumps.

The G (GH) series of sand and gravel pumps are single-pump shell constructions, although there is no replaceable liner, but this also makes his over-flow passage wide and smooth. Its overcurrent components are also durable with NI-hard, high-chromium and other wear-resistant materials.

The most notable feature of the 8-6E-G is its wide over-current passage. Its suction port is 200mm and the maximum over-flow diameter can reach 127MM, Only need to have a 120KW motor to drive it.

Performance

Product Name: Sand dredge gravel pump
Model: 8/6E-G
Outlet size: 150mm (6 inch)
Inlet size: 200mm (8 inch)
Capacity: 126-576 m3/H
Head: 6-45 m
Maximal efficiency: 60%
NPSH : 3-4.5 m
Allowable mating max power: 120 kw
Base type: G
RPM : 800-1400 r/min
Seal type: gland packing
Max. Diameter of Flowed Particle: 127 mm
Material of liner : anti wear chromium alloy
Theory : Centrifugal pump
Impeller Vanes: 3
Impeller Type: close
Material : high chromium alloy
Material of Frame plate: chromium alloy
Place of Origin:Shijiazhuang,hebei,China

Pump features

1. G series pump is single-casing , horizontal Gravel pump. The outlet direction can be positioned 360°, easy to install.
2. Shaft adopt cylinder structure, which is convenient to adjust the gap between impeller

and front wearing plate. The shaft is grease lubrication.
3. Shaft seal: expeller drive seal, packing seal, and Mechanical seal.
4. Wide flow Passage , high efficient wear resistance.
5. Driving method: V belt drive, elastic shaft coupling transmission, gear box drive, etc.
6. The wet parts are Ni-hard and high-chrome alloys with good anti-corrosive property.
7. Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.

Type meaning

8/6E-G(H)

8----------------pump inlet size (inch )

6----------------pump outlet size (inch)

E----------------Support Type

G----------------G gravel pump

H----------------High head gravel pump

G(H) gravel and sand pump material list for parts:

Part Name Material Specification HRC Application OEM Code
Bowl, door, back liner & impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH not less than 4 A49
AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc. A33
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Door clamp plate, bearing house & base Metal Grey iron G01
Ductile iron D21
Shaft Metal Carbon steel E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 C21
304 SS C22
316 SS C23
Joint rings & seals Rubber Butyl S21
EPDM rubber S01
Nitrile S10
Hypalon S31
Neoprene S44/S42
Viton S50

Performance table:

Pump Model Allowable Clear Water Performance
Max. Power Capacity Q Head Speed Max.Eff. Impeller. Dia. (mm)
(kw) m3/h H (m) n(r/min) (%)
6/4D-G 60 36-250 5-52 600-1400 58 378
8/6E-G 120 126-576 6-45 800-1400 60 378
10/8S-G 560 216-936 8-52 500-1000 65 533
10/8F-G 260 216-936 8-52 500-1000 65 533
10/8S-GH 560 180-1440 24-80 500-950 72 711
12/10F-G 260 360-1440 10-60 400-850 65 667
12/10G-G 600 360-1440 10-60 400-850 65 667
12/10G-GH 600 288-2808 16-80 350-700 73 950
14/12G-G 600 576-3024 8-70 300-700 68 864
16/14G-G 600 720-3600 18-44 300-500 70 1016
16/14TU-G 1200 324-3600 26-70 300-500 72 1270
18/16G-G 600 720-4320 12-48 250-500 72 1067
18/16TU-G 1200 720-4320 12-48 250-500 72 1067
