Cantilevered Shaft Vertical Cantilever Pump , Vertical Centrifugal Pump With Agitator
Cantilevered Shaft Vertical Cantilever Pump , Vertical Centrifugal Pump With Agitator
Cantilevered Shaft Vertical Cantilever Pump , Vertical Centrifugal Pump With Agitator
Cantilevered Shaft Vertical Cantilever Pump , Vertical Centrifugal Pump With Agitator
Specifications
Brand Name :
CNSME
Model Number :
100RV-SP
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Cantilevered Shaft
Theory :
Centrifugal
Application :
Effluent Handling
Type :
Vertical
Accessory :
With Agitator
Description

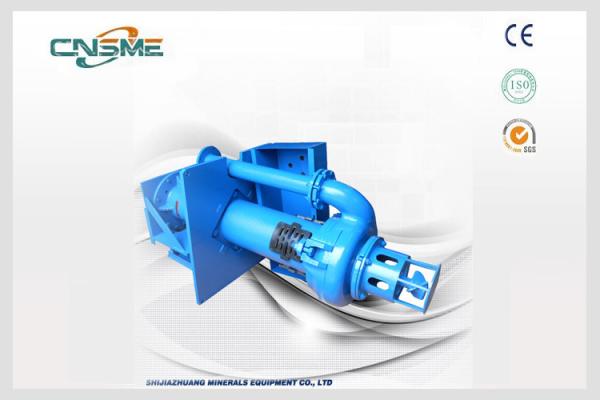

Popular Vertical Submerged Cantilevered Shaft Sump Slurry Pump

Introduction:

Wetted Parts


Liners – Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.
Impeller – Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush – Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Shaft seal
Expeller Seal(Centrifugal Seal) – Available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited.
Stuffing Box – Gland sealing with packing and lantern ring.

Key features/benefits:

  • Cantilevered shaft design
  • Double suction semi-open impeller
  • Agitator option keeps solids in suspension
  • SPR models feature full rubber covering for corrosion resistance
  • Recessed impeller option passes oversized material
  • Fully elastomer lined or hard metal fitted to suit application and provide extended operating life
  • No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available

Specifications:

Model SV-100R
Capacity 54-289m3/h
TDH 5-35m
Rated Motor Power 75Kw
Speed 500-1200r/min
Max. Efficiency 56%
Standard Shaft Length 1500mm

Materials of Construction:

Part Description Material
Casing A05- High Chromium Alloy
Impeller A05- High Chromium Alloy
Back Liner A05- High Chromium Alloy
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Grey Iron

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

Performance Curve:

Type Size Frame Impeller: SV10206A05 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SV 100 R 5 Open Type Metal Vans, Diameter:390mm Gland Packing, Expeller, Mechanical Seal 75 1200

32

SV SP Vertical Metal Sump Pump Specifations & Prices
Pump
Model		 S×D
(mm)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 Length
Shaft (mm)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SV/40P 80×40 15 Metal
(A05)		 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 285
SV/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 432
SV/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 867
SV/150S 240×150 110 108-479.16 30-133.1 8.5-40 500-1000 52 1800 480 1737
SV/200S 320×200 110 189-891 152.5-247.5 6.5-37 400-850 64 2100 550 2800
SV/250T 200 180-1080 50-300 10-35 400-750 60 2400 605 3700
SV/300T 200 180-1440 50-400 5-30 350-700 62.1 2400 610

Material of Metal Lined Vertical Slurry Pump:

No Parts name Materials
1 Shaft 4140 High Tensile Steel*
2 Bearing SKF/Timken(Standard)
3 Bearing Housing HT250
4 Bearing spacer 420 Stainless Steel
5 Bearing SKF/Timken(Standard)
6 Shim 20# Stainless steel
7 Column 20# Stainless steel
8 Strainer QT500-7
9 Back liner 27.5% UltraChrome Alloy
10 Impeller 27.5% UltraChrome Alloy
11 Pump casing 27.5% UltraChrome Alloy
12 Lower strainer QT500-7
13 Discharge pipe 20# Stainless steel
14 Flushing pipe Q235 Carbon steel
15 Coupling 45# Steel
16 Middle supporting parts 20# Stainless steel

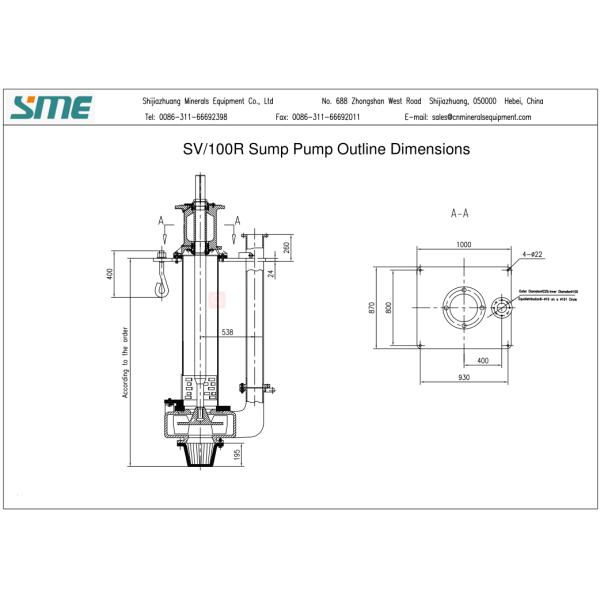

Outline Dimension Of SP-100R
