8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
Specifications
Brand Name :
CNSME
Model Number :
200SV-SP
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30000 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Theory :
Centrifugal
Application :
Waste Water
Type :
Vertical Cantilever
Impeller :
5 Open Vans
Standard Shaft Length :
2100mm
Description

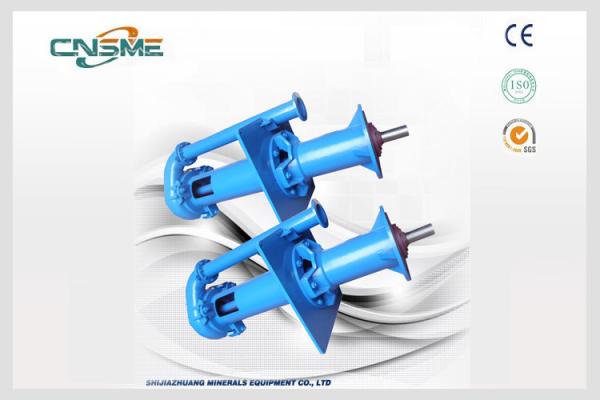

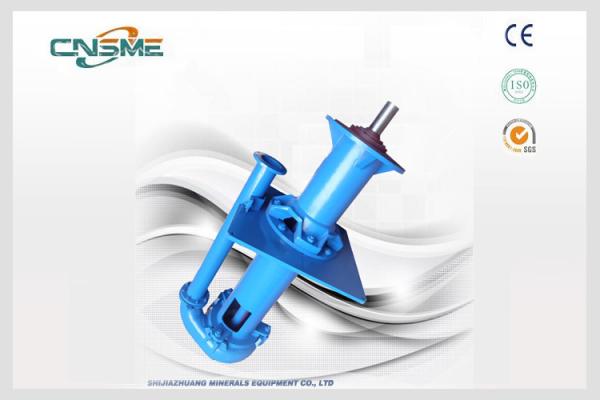

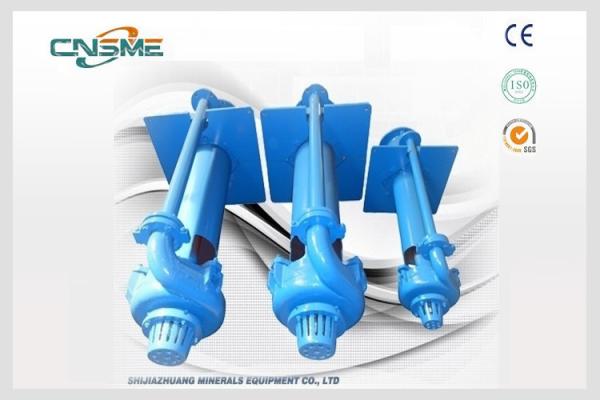

8 Inch Motor Engine Connected Vertical Submersible Sump Slurry Pumps

Introduction:

Features of 200SV-SP metal lined vertical slurry pumps are as follows:

It is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.

Specifications:

Model SV-200S
Capacity 189-891m3/h
TDH 6.5-37m
Rated Motor Power 110Kw
Speed 400-850r/min
Max. Efficiency 64%
Standard Shaft Length 2100mm

Construction of SV Sump Pumps:

8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump

8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump

Materials of Construction:

Part Description Material
Casing A05- High Chromium Alloy
Impeller A05- High Chromium Alloy
Back Liner A05- High Chromium Alloy
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Metal

Material: High Chrome Alloy A05

8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump

Performance Curve:

8 Inch Motor Engine Connected Vertical Submersible Sump / Centrifugal Slurry Pump
