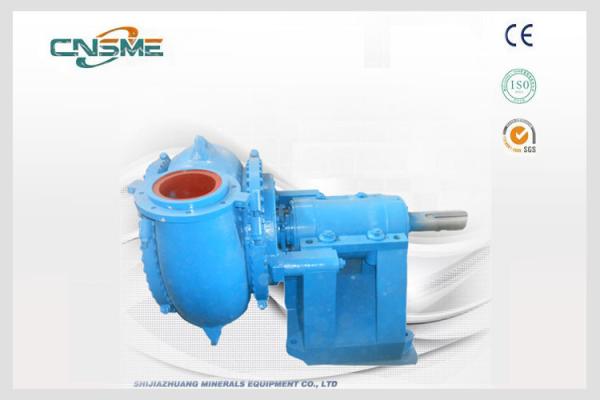

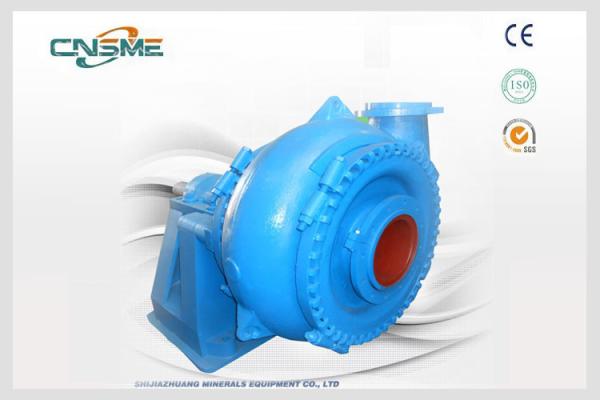

River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
Specifications
Brand Name :
CNSME
Model Number :
8/6E-G
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Type :
Single Casing
Use :
Sand & Gravel
Seal :
Packing Seal
Feature :
Sand Dredging Pump
Description

River Solids High Flow Single Suction Sand Dredge Gravel Pumps

Introduction:

8/6E-G gravel pumps are single - stage, single - suction, cantilevered, horizontal, centrifugal slurry pump. thry are designed for continously handing thr most difficult higher abrasive slurries which contain too big solids to be pumped by common pumps.

Chatacteristic:

--Made with high chromium abrasion resistance alloy

-- Wide wet passage

--Discharge direction of pump can be oriented in any direction of 360.

--Easy installation and operation

--Good Performance of NPSH

--Abrasion-resistance

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Specifications:

Model SG-150E
Outlet 6-inch
Capacity 126-576m3/h
TDH 6-45m
Rated Motor Power 120Kw
Speed 800-1400r/min
NPSH 3-4.5m

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

Performance Curve:

Type Size Frame Impeller:EG86137 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SG 150 E 3 Closed Type Metal Vans, Diameter:391mm Gland Packing, Expeller, Mechanical Seal 120 1400 127

SG(SHG) Series Gravel Pump Specifations & Prices
Pump
Model		 S×D
(inch)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SG/100D 6×4 60 Metal
(A05)		 36-250 10-70 5-52 600-1400 58 2.5-3.5 3 378 460
SG/150E 8×6 120 126-576 35-160 6-45 800-1400 60 3-4.5 391 1120
SG/200F 10×8 260 216-936 60-260 8-52 500-1000 65 3-7.5 533 2250
SG/200S 10×8 560 216-936 60-260 8-52 500-1000 65 3-7.5 533 2285
SHG/200S 10×8 560 360-1260 100-350 20-80 500-950 72 2-5 686 3188
SG/250G 12×10 600 360-1440 100-400 10-60 400-850 65 1.5-4.5 667 4450
SHG/250G 12×10 600 360-2160 100-600 20-80 350-700 73 2-8 915 4638
SG/300G 14×12 600 432-3168 120-880 10-64 300-700 68 2-8 864 5400
SG/300T 14×12 1200 432-3168 120-880 10-64 300-700 68 2-8 1120
SG/350G 16×14 600 720-3240 200-900 20-42 300-500 70 3-9 2250 11000

Explosive View of SG Gravel Pumps:

River Solids High Flow Sand Gravel Pump Single Suction Abrasion-resistance
