Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets
Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets
Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets
Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets
Specifications
Brand Name :
CNSME
Model Number :
6/4D-G
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30000 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Use :
Sand & Gravel
Structure :
Single Casing
Hardness :
HRC 58-62
Type :
Submersible Sand Dredging Pumps
Description

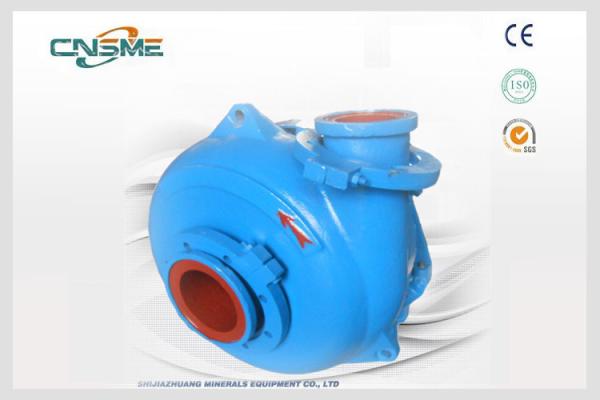

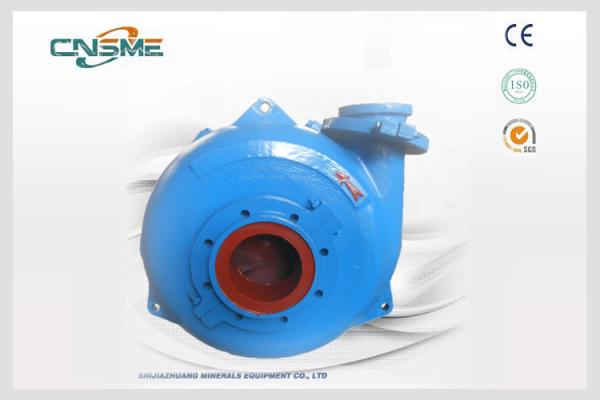

4 Inch Amphibious Excavator Gravel Pump Sets , Booster Gravel Pumps

Introduction:

SG/100D is a 4-inch gravel pump, which can be driven by elec. motor or diesel engine. SG is the standard type with normal discharge head, and also, we have this type SHG-300G with a higher discharge head to meet the customer's different applications.

SG series Sand Gravel Pump is a single stage, single casing, centrifugal horizontal pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the Sand Gravel pump long life and easy maintenance.

Specifications:

Model SG-100D
Outlet 4-inch
Capacity 36-252m3/h
TDH 10-50m
Rated Motor Power 60Kw
Speed 600-1400r/min
NPSH 2.5-3.5m

Explosive View of SG Gravel Pumps:

Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

Booster Sand Gravel Pump , 4 Inch Amphibious Excavator Gravel Pump Sets
