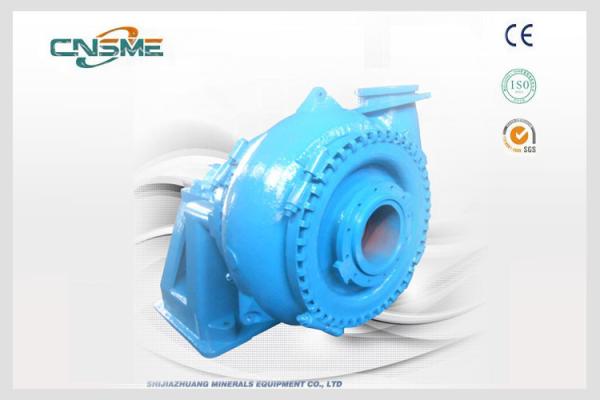

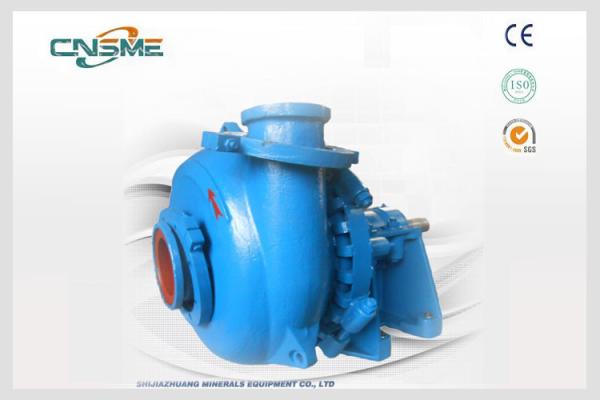

8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
Specifications
Brand Name :
CNSME
Model Number :
SG/150E
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Model :
8/6E-G
Power :
120Kw
Use :
Lake Sand Dredging
Structure :
Horizontal Singe Stage
Hardness :
HRC 58-62
Feature :
Sand Suction Dredger Pump
Description

8 / 6 G Gravel Pump for Sand and Gravel and Stones with Big Solids

Introduction:

Series SG sand pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

1. Broad path created by single casing and clamp bands connection;
2. Unique design to make maintenance and wet parts replacement convenient;
3. The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property;
4. The discharge direction of pump can be oriented in any direction of 360°;
5. The standard seal type is packing seal.
6. Good performance of NPSH.

Specifications:

Model SG-150E
Outlet 6-inch
Capacity 126-576m3/h
TDH 6-45m
Rated Motor Power 120Kw
Speed 800-1400r/min
NPSH 3-4.5m

Explosive View of SG Gravel Pumps:

8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

8 / 6 G Sand Gravel Pump for Sand and Gravel and Stones with Big Solids
