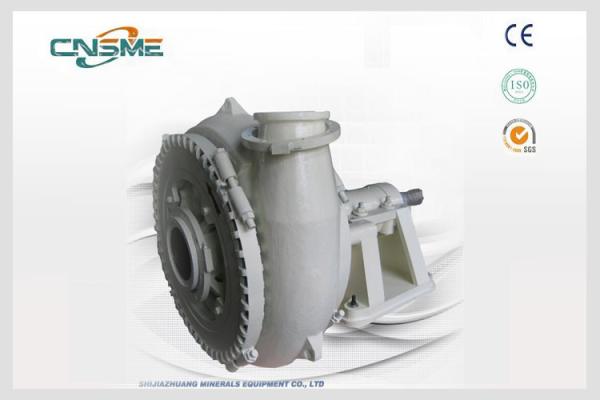

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
Specifications
Brand Name :
CNSME
Model Number :
SHG/350TU
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Pressure :
High Pressure
Theory :
Centrifugal
Use :
Sand & Gravel
Structure :
Single Stage
Power :
1200Kw
Feature :
Single Casing
Description

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

Introduction:

High pressure sand pump SHG/350TU is the biggest model among the high head gravel pumps that we can make. It is not only a good choice for applications where high pressure is required, but also is widely used to transport very robust slurries like big stands and stones.

Type SHG high head gravel pump is found in wide use for industries like sand and gravel, quarries, dredging and extraction. It is single staged with only one closed type impeller with 3 blades, which allows big solids to pass through its impeller passage.

Specifications:

Model SHG-350T
Outlet 14-inch
Capacity 720-3600m3/h
TDH 10-70m
Rated Motor Power 1200Kw
Speed 300-500r/min
NPSH 3-6m

Explosive View of SG Gravel Pumps:

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
