Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
Specifications
Brand Name :
CNSME
Model Number :
SHG/350TU
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Use :
Sand & Gravel
Structure :
Single Casing
Hardness :
HRC 58-62
Feature :
Single Casing
Description

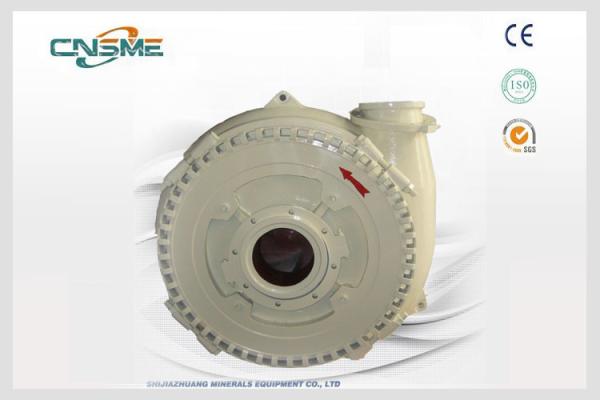

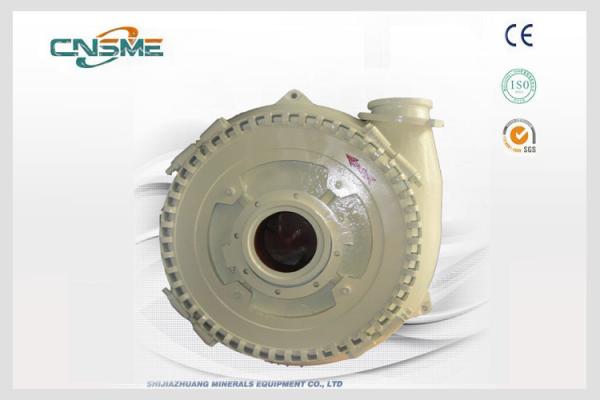

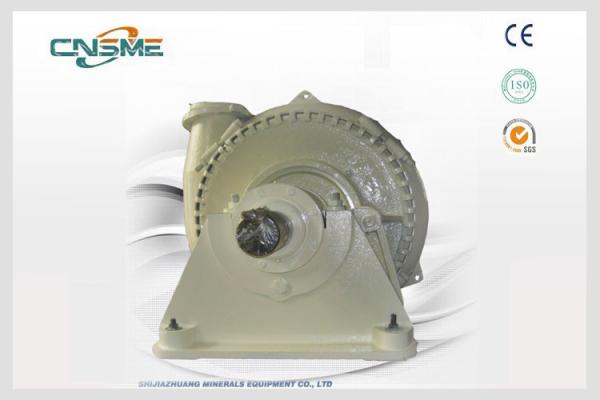

Dredging Gravel Pump With High Flowrate For Filling Operations

Introduction:

SHG/350TU is one of the best sold sand and gravel dredging pumps, the discharge size is 12-inch. This pump is very widely used because it is neither too big nor too small, and the cost is very reasonable. It can handle up to 2880 cubit meters of sand slurry per hour. Our heavy duty dredging pumps can be installed to electric motor where power is available or to diesel engine where there is no electricity.

SG series Sand Gravel Pump is a single stage, single casing, centrifugal horizontal pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the Sand Gravel pump long life and easy maintenance.

Specifications:

Model SHG-350T
Outlet 14-inch
Capacity 720-3600m3/h
TDH 10-70m
Rated Motor Power 1200Kw
Speed 300-500r/min
NPSH 3-6m

Explosive View of SG Gravel Pumps:

Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

Dredging Gravel High Flow Rate Pumps For Filling Operations Centrifugal
