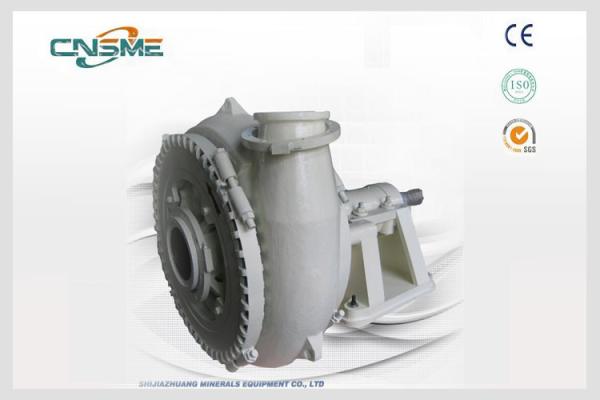

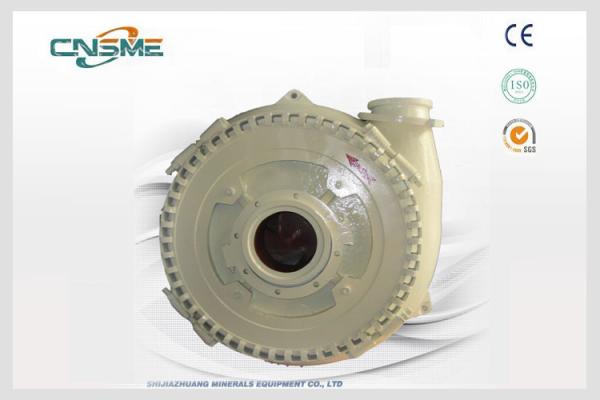

200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
Specifications
Brand Name :
CNSME
Model Number :
SG/200F
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Use :
Sand & Gravel
Hardness :
HRC 58-62
Color :
Bule
Type :
Heavy Duty
Description

Arduous Slurry Sand Gravel Pumps For Highly Abrasive Slurries

Introduction:

SG gravel pump, sand pump, dredging pump, river sand pump, gravel and stone pump, whatever you call it, is used for sand and gravel excavation and dredging. SG pumps are single casing hard metal high chrome alloy sand pumps, which are very abrasion resistant.

Type SG are single casing heavy duty metal gravel pumps designed for higher head duties such as cyclone feed, long distance pipelines and high static discharge heads.

They are used for the continuous pumping of highly abrasive slurries that contains very large particals, like sand and stone. Gravel pH range is also from 5 to 14.

SME offers hard wearing SG Minerals slurry pump solutions for increased productivity in dredging.

Specifications:

Model SG-200F
Outlet 8-inch
Capacity 216-936m3/h
TDH 8-52m
Rated Motor Power 560Kw
Speed 500-1000r/min
NPSH 3-7.5m

Explosive View of SG Gravel Pumps:

200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

200F Heavy Duty Slurry Sand Pumping Equipment For Highly Abrasive Slurries
