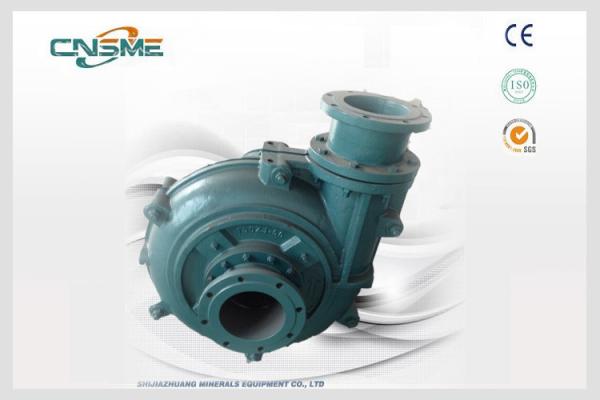

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
Specifications
Brand Name :
CNSME
Model Number :
80ZJ
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Crate
Material :
A05 Abrasion Resistant White Iron
Color :
Bule
Stage :
Singe Stage
Pressure :
High Pressure
Impeller :
5-Vane Impeller
Hardness :
HRC 58-62
Description

Metal High Pressure Slurry Pump With Interchangeable Spare Parts

Introduction:

The SME ZJ pump range has proven performance and wear advantages which will re-write the Total Ownership Cost equation for many end-users.

Oil being lubrication with labyrinth style bearing seals.

Internal liners can be fully worn before replacement as the ductile iron split outer casing provides structural strength to contain all design operating pressures regardless of the worn condition of the liner. Multiple seals available: gland seal, mechanical seal or large diameter expeller seal.

Like ZGB pumps, ZJ pumps are also made of hard metal material only. The ZJ pumps can pump very high pressure. If you are looking for applications where you need to pump the water slurries to over 80 meters, then ZJ pumps are one of the better solutions.


Specifications:

Model 80ZJ
Capacity 43-242m3/h
TDH 8-109.8m
Max. Allowable Motor Power 37/45/55/75/160Kw
Speed 700-1480r/min
Max. Efficiency 67.7%
Lubrication Oil

Construction of ZJ Slurry Pump:

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts

Typical Applications:

Bottom/Fly Ash

Coal Washing

Power Plants

Potash Fertilizer Plant
Iron Ore Dressing Plant

Gold Mine Concentration Plant

Performance Curve:

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts

Projects with ZJ Slurry Pumps:

Metal ZJ Slurry Pump High Pressure Slurry Pump With Interchangeable Spare Parts
