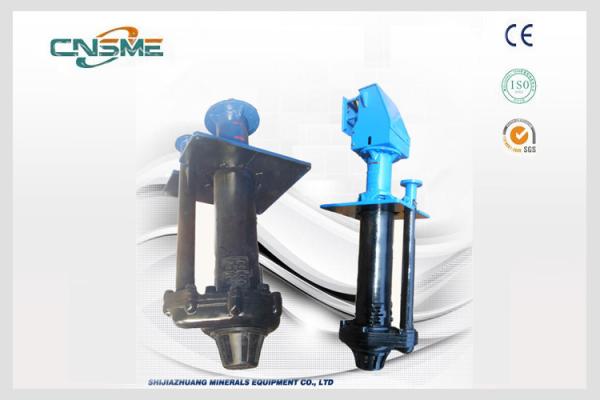

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
Specifications
Brand Name :
CNSME
Model Number :
SVR/100R
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Application :
for Corrosive Slurry
Type :
Vertical Cantilever
Theory :
Centrifugal Heavy Duty
Color :
Bule
Model :
SVR/100R
Description

Rubber Lined Sump Suction Vertical Slurry Pumps For Copper Ore

Introduction:

Semi-submersible slurry pumps are vertical, to operate in the liquid obstanovket. This series is a single-cabinet design of the pump, so that has a lower weight, small size, easy to operate and maintain.
The body pumps «SVR» is made of wear-resistant metal alloy. The submerged part of the pump series «SVR» coated with elastomer (rubber), which allows pumping corrosive slurry with small particles.

Specifications:

Model SVR-100R
Capacity 54-289m3/h
TDH 5-35m
Rated Motor Power 75Kw
Speed 500-1200r/min
Max. Efficiency 56%
Standard Shaft Length 1500mm

Construction of Vertical Slurry Pump:

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump

Materials of Construction:

Part Description Material
Casing - Black Natural Rubber
Impeller - Black Natural Rubber
Back Liner - Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃

Performance Curve:

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump

Projects with Vertical Slurry Pumps:

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump

SME SPR Sump Pump Orders:

Rubber Lined Slurry Sump Pump For Copper Ore Vertical Cantilever Sump Pump
