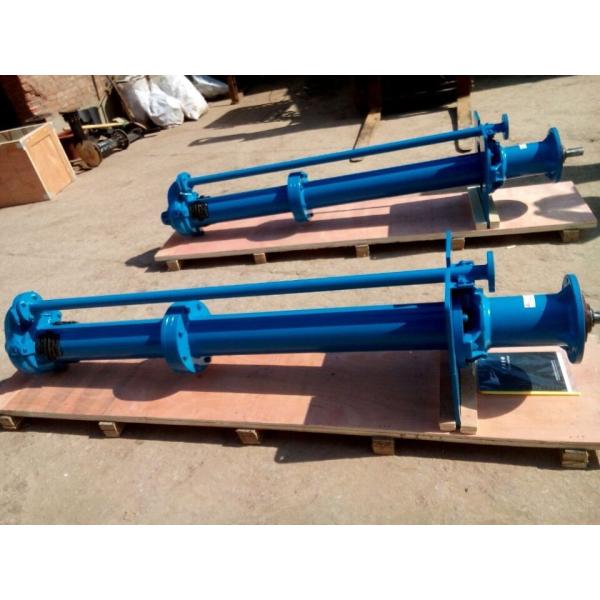

65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
Specifications
Brand Name :
CNSME
Model Number :
65QV (SV-65Q)
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Flowrate :
23.4-111m3/hr
Speed :
800-1550rpm
Efficiency :
max. 65%
Impeller :
Double Suction Semi-open Impeller
Application :
Sewage,Submersible,mining,muddy water,Transfer slurry
Material :
Rubber 55
Feature :
High Efficiency,Heavy duty,High Flow,wear and corrosion resistant
Warranty :
1 year without wet parts
Type :
Vertical
Shaft Length :
1200mm
Description

65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator

Introduction:

65QV-SP pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

Vertical slurry pump standard

1. Standard pump into the liquid depth is 1.2 meters , the highest speed is 1150 r/min.

2.When pump into the liquid depth of 0.9 m, the highest speed is 1500 r/min,

3. When pump into the liquid depth of 1.5 m, the highest speed is 1000 r/min,

4. Standard dipping into the liquid depth is 0.9 meters. Allowed the most high power is15 KW

Function
1). Natural rubber R55 material.
2). 65QV/SPR type sump pump parts, immersed in liquid rubber lining.
3). Different length of the pump drive shaft or inhaled could be selected
4). V-belt drive, direct drive, and flexible coupling.
5). Bearing to lubricate oils.
6). use of variable-speed, the best condition in the pump operation, long service life, run- effective,meet many bad transportation conditions.

Specifications:

Type Size Frame Impeller:SVR65206R55 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SPR 65 Q 5 Open Type Rubber Vans, Diameter:290mm Gland Packing, Expeller, Mechanical Seal 30 1500 15

SVR Series Vertical Rubber Sump Pump Specifations & Prices
Pump
Model		 S×D
(mm)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 Length
Shaft (mm)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SVR/40P 80×40 15 Rubber
(R55)		 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 275
SVR/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 420
SVR/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 850
SVR/150S 240×150 110 72-504 20-140 10-35 500-1000 56 1800 480 1720

Materials of Construction:

Part Description Material
Casing R55- Black Natural Rubber
Impeller R55- Black Natural Rubber
Back Liner R55- Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

SV Series Drawing:

65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator

Projects with Vertical Slurry Pumps:

65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator

Customer Order

65QV A05 High Chrome Alloy Vertical Centrifugal Pump Slurry Sump Pump With Agitator
