2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
Specifications
Brand Name :
CNSME
Model Number :
SF
Certification :
CE/ISO/EAC
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Standard export packaging
Size :
2 inch to 8 inch
Capacity :
7.6m3/h to 575m3/h
Head :
5m to 29m
Materials :
High chrome alloy, Natural rubber, Neoprene, Polyurethane
Description

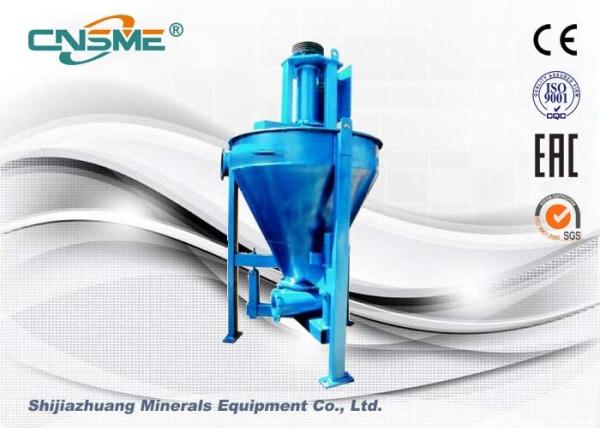

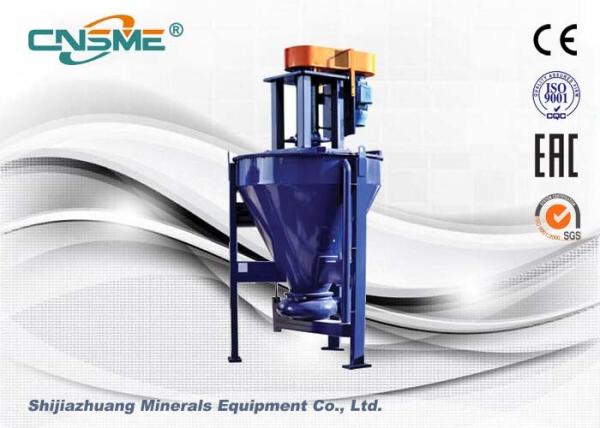

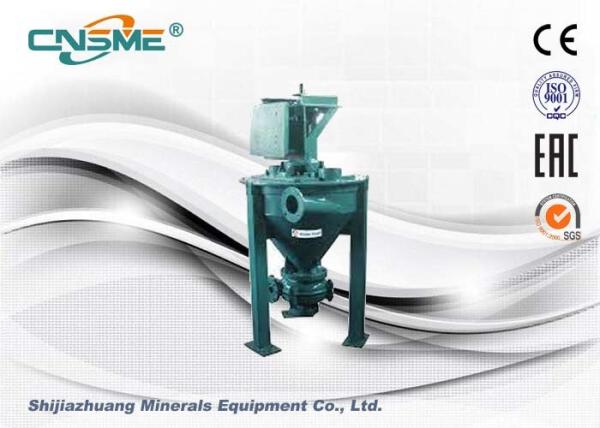

SF Froth Pump Introduction:

SF Froth Pump is designed for slurry containing froth and pulp. With their limitation of name, they could also be used for general industrial slurry pumping.

This series of pumps can effectively eliminate the foams and bubbles out of the slurry during the operation. Even the feed-in material is not enough, the pump can still work normally, which is especially applied in various of the flotation processes, it is an ideal pump product for conveying foam type slurry.

SF Froth Pump Features:

1. SF froth pump is suitable for transporting slurry with froth, especially for flotation processing.

2. SF froth pump can eliminate the froth in the running slurry and work normally even if the feeding slurry is not enough.

3. The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the froth.

4. The belt and pulley are easy to be altered in order to change the speed according to the working condition.

5. Interchangeable wet parts are made of special alloy, rubber or other wear-resistant materials according to slurry properties

SF Froth Pump Structural Drawing:

2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf

SF Froth Pump Performance Chart:

2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf

SF Froth Pump Performance Data Sheet:

Model

Power

P(KW)

Capacity

Q(m³/h)

Head

H(m)

Speed

n(r/min)

Eff.

η%

Inlet dia.

(mm)

Outlet dia.

(mm)
SF2Q 3-15 6-43 6-30 800-1800 45 100 50
SF3Q 3-18.5 23-78 5-28 700-1500 55 150 75
SF4R 5.5-37 33-187 5-28 500-1050 55 150 100
SF6S 15-75 80-393 5-25 250-680 55 200 150
SF8S 37-110 126-575 5-26 350-650 55 250 200

SF Froth Pump Application:

▶Iron Ore Dressing Plant

▶Copper Concentration Plant

▶Gold Mine Concentration Plant

▶Molybdenum Concentration Plant

▶Potash Fertilizer Plant

▶Other Mineral Processing Plants

▶Other industries

2 Inch To 8 Inch Vertical Froth Pumps Polyurethane Lined Sf
