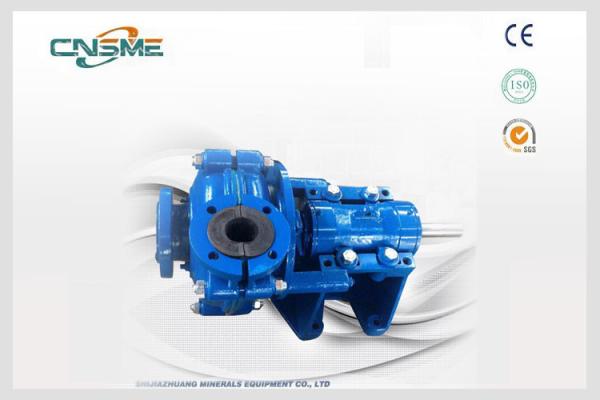

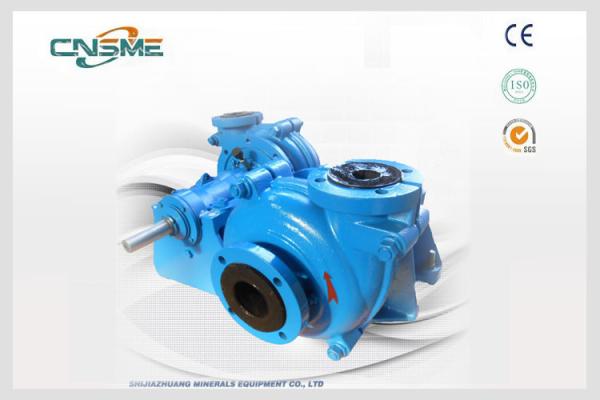

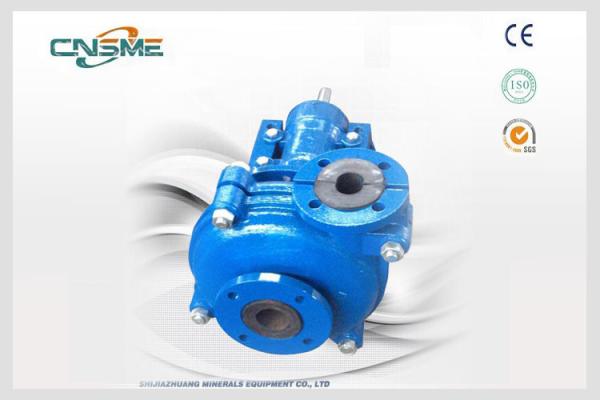

High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic Mining
Specifications
Brand Name :
CNSME
Model Number :
4/3D-R
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Neogotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Theory :
Centrifugal Pump
Shaft Seal :
Dynamic Expeller Seal
Rubber Lining :
Soft Rubber
Pump Casing :
Horizontal Split Pumps
Impeller Type :
Closed with 5 Vanes
Usege :
Non-Metallic Mining
Description

High Efficiency Designed Natural Rubber In Non-Metallic Mining

Ease of Maintenance Features of Slurry Pumps:

High-efficiency design Very low power costs;

Proven hydraulics for slurry service, Extended parts wear life Thick bolt-in liners;

Positive assembly in casing for extended life;

Large liners reinforced with a fiberglass shell Resist liner collapse under adverse conditions;

Large-diameter closed impeller Lower speeds and extended wear life;

Replaceable suction wearplate available on 6 inch (150 mm) and larger pumps, Provides reduced downtime and lower replacement cost;

Axially adjustable bearing assembly Maintains peak operating efficiency and life;

Short, rigid shaft and heavy-duty bearings Low deflections and reliable service;

Packed gland option or mechanical seal Standard, low or no dilution arrangements;

Precision-machined cast iron frame Sturdy, vibration-free support;

Five discharge positions available Suitable for most piping arrangements.

SHR Series Rubber Slurry Pump Specifations & Prices
Pump
Model		 S×D
(inch)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SHR/25B 1.5×1 15 Rubber
()		 10.8-25.2 3-7 7-52 1400-3400 35 3 152 77
SHR/40B 2×1.5 15 25.2-54 7-15 5.5-41 1000-2600 50 2.5-5 5 178 104
SHR/50C 3×2 30 36-75.6 10-21 13-39 1300-2100 2-4 213 154
SHR/75C 4×3 30 79.2-180 22-50 5-34.5 800-1800 59 3-5 245 236
SHR/75D 4×3 60 245 290
SHR/100D 6×4 60 144-324 40-90 12-45 800-1350 65 3-5 365 454
SHR/100E 6×4 120 365 635
SHR/150E 8×6 120 324-720 90-200 7-49 400-1000 65 5-10 510 982
SHR/150F 8×6 260 510 1390
SHR/150R 8×6 300 510
SHR/200F 10×8 260 540-1188 200-450 7-45 300-650 80 2.5-7.5 686 2581
SHR/200ST 10×8 560 540-1188 200-450 7-45 300-650 80 2.5-7.5 686 3130
SHR/250F 12×10 260 720-1620 320-700 13-14 300-500 79 3-8 762 2807
SHR/250ST 12×10 560 720-1620 320-700 13-14 300-500 79 3-8 762 3357
SHR/300F 14×12 260 1152-2520 380-850 11-63 250-550 79 4-10 965 4123
SHR/300ST 14×12 560 1152-2520 380-850 11-63 250-550 79 4-10 965 4672

High Efficiency Natural Rubber Lined Slurry Pumps In Non-Metallic MiningA 8/6E-R rubber slurry pump used for tranporting quarries.

Specifications:

Model SHR-75D
Outlet 3-inch
Capacity 79.2-180m3/h
TDH 5-34.5m
Rated Motor Power 60Kw
Speed 800-1800r/min
NPSH 3-5m

Construction of SHR Rubber Pumps:

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Standard Material of Wet-end Parts: Natural Rubber

Test Item Standard Test Result Conclusion
Hardness (Shore A) 52±3 51 Qualified
300% Stretching Strength (MPa) ≥4 4.6 Qualified
Tensile Strength (MPa) ≥21 24 Qualified
Elongation at Break (%) ≥500 590 Qualified
Tensile Set at Break (%) ≤25 24 Qualified
Rubber to Metal Bonding Pull Strength (MPa) ≥5 6 Qualified
Akron Abrasion cm3/1.61km ≤0．08 0．074 Qualified
Acid & Alkali Resistant PH Value (Liquid) 3-12≤65℃ － Qualified
Apprearance Neat Qualified
－ － － －
－ － － －
