Description

Anti-Corrosion Mining Slurry Pump Centrifugal Horizontal Shaft

Introduction:

Application and Features:

8/6E-R slurry pump are cantilevered, horizontal, centrifugal slurry pumps.

It is designed for the handling highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.The pumps of this type also may be installed in multistage series.

The frame plates for the type BM, BH pumps have replaceable wear-resistant metal liners or rubber liners.The impellers are made of wear-resistant metal or rubber.

The shaft seals for type SH, pumps may be adoptable of gland seal or expeller seal.The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.


Brief Introcustion to Pump Type Selection:

Refering to the performance curves of the pump the selected capacity range should be as follows:

Pump Type SH: 40-80% for higher density, strong abrasive slurries

40-80% for medium density, medium abrasive slurries

40-120% for lower density, lower abrasive slurries

Specifications:

Model SHR-150E
Outlet 6-inch
Capacity 324-720m3/h
TDH 7-49m
Rated Motor Power 120Kw
Speed 400-1000r/min
NPSH 5-10m

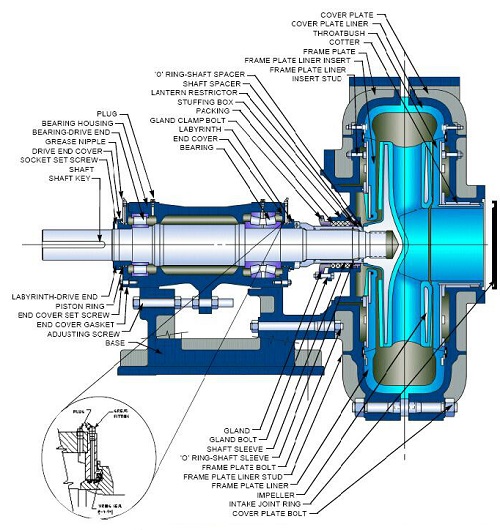

Construction of Rubber Slurry Pump:

Anti - Corrosion Mining Slurry Pump Horizontal Shaft Closed Impeller Type

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Standard Material of Wet-end Parts: Natural Rubber R55

Performance Curve:

Anti - Corrosion Mining Slurry Pump Horizontal Shaft Closed Impeller Type
