Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
Specifications
Brand Name :
CNSME
Model Number :
6/4D-R
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Neogotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Impeller :
Natural Rubber
Theory :
Centrifugal
Usage :
Slurry Pumping
Liners :
Rubber
Shaft :
Horizontal Type
Color :
Blue
Description

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

Introduction:

1. Rubber lined slurry pumps are less used than metal slurry pumps in the heavy duty abrasion slurry applications. Rubber pumps are more used in find sand, copper preparation and other industries where the pH value of the slurry is between 2-4.

2. Phosphric acid slurry pump SHR/100D is identical to the standard World War-man model 6/4D-R. The material of wear parts is natural rubber-soft black rubber, to resist corrosion.

3. Rubber lined slurry pumps are used in below areas:

Mining and Mineral Processing

Power Generation and Steel Plants

Industrial Effluents and Liquors

Coal Preparation and other Acidic Applications

3. Specifications:

Model SHR-100D
Outlet 4-inch
Capacity 144-324m3/h
TDH 12-45m
Rated Power 60Kw
Speed 800-1350r/min
NPSH 3-5m

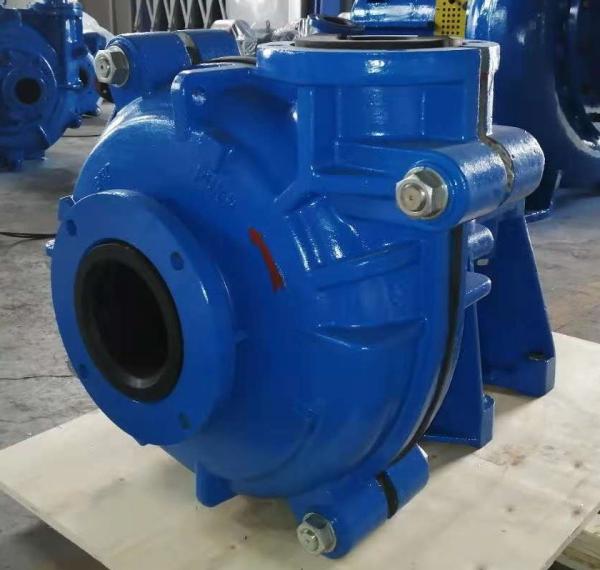

4. Photos shipped to Worldwide

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals ProcessingRubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

5. SHR/100D: SHR --- SME Heavy Rubber Pump; 100 --- 100mm (4-inch), Outlet; D --- Frame Type, bearing a maximum of 60Kw motor.

6. Outline Dimensional Drawing:

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

7. Specification Table:

Pump
Model		 S×D
(inch)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)
Impeller m3/h l/s
SHR/25B 1.5×1 15 Rubber
()		 10.8-25.2 3-7 7-52 1400-3400 35
SHR/40B 2×1.5 15 25.2-54 7-15 5.5-41 1000-2600 50 2.5-5
SHR/50C 3×2 30 36-75.6 10-21 13-39 1300-2100 2-4
SHR/75C 4×3 30 79.2-180 22-50 5-34.5 800-1800 59 3-5
SHR/75D 4×3 60
SHR/100D 6×4 60 144-324 40-90 12-45 800-1350 65 3-5
SHR/100E 6×4 120
SHR/150E 8×6 120 324-720 90-200 7-49 400-1000 65 5-10
SHR/150F 8×6 260
SHR/150R 8×6 300
SHR/200F 10×8 260 540-1188 200-450 7-45 300-650 80 2.5-7.5
SHR/200ST 10×8 560 540-1188 200-450 7-45 300-650 80 2.5-7.5
SHR/250F 12×10 260 720-1620 320-700 13-14 300-500 79 3-8
SHR/250ST 12×10 560 720-1620 320-700 13-14 300-500 79 3-8
SHR/300F 14×12 260 1152-2520 380-850 11-63 250-550 79 4-10
SHR/300ST 14×12 560 1152-2520 380-850 11-63 250-550 79 4-10

Construction of Rubber Slurry Pump:

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Standard Material of Wet-end Parts: Natural Rubber

Performance Curve:

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing

Rubber Lined Heavy Duty Slurry Pumps War - man Equivalent for Mining and Minerals Processing
