Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries
Specifications
Brand Name :
CNSME
Model Number :
SHR/75C
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Neogotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Corrosive Resistant Rubber
Theory :
Centrifugal
Usage :
Slurry Pumping
Model :
SHR/40B
Type :
Horizontal
Impeller :
Closed Type D3147
Description

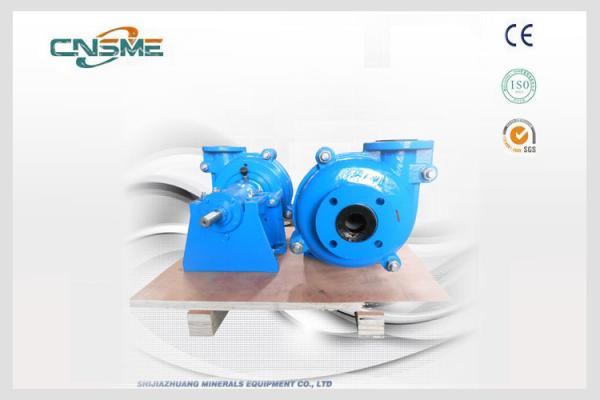

Rubber Lined Slurry Pump to Transport Abrasive Solids and Slurries

Introduction:

The SHR rubber centrifugal pump has been designed for quick and easy maintenance. The rubberized pump is ideal for transfer of solids of pH value from 2 to 4. The flow parts can be changed from rubber spares to metal spares.

The SME SHR Rubber-Lined Series features a split-casing design with molded, replaceable rubber liners. The molded liner may be specified in a variety of natural and synthetic rubbers. Natural gum rubber is standard. The liners offer a shore-A hardness of 30-40 with a tensile strength minimum of 2,700 psi (18 n/mm2). Double-wall construction with an outer grey-iron casing and inner molded-rubber liners. Rubber lined pumps are mainly used for cossosive slurries with pH value 2-5, and they are also used to pump silicon sand, and are used in glass factories.

The heavy duty rubber lined slurry pumps produced by SME are qualified, reliable to the customers from all over the world. We have very successful cases with our customers using the rubber pumps SHR-100E and SHR-150E for quarries, and rubber pump SHR-40B, SHR-75C for gold separation plants.

Specifications:

Model SHR-75C
Outlet 3-inch
Capacity 79.2-180m3/h
TDH 5-34.5m
Rated Motor Power 30Kw
Speed 800-1800r/min
NPSH 3-5m

Construction of SHR Rubber Pumps:

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Standard Material of Wet-end Parts: Natural Rubber

Performance Curve:

Reverse Engineer Slurry Pump Rubber Lined Pumps Transport Abrasive Solids / Slurries

Projects with SHR Rubber Pumps:
