Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
Specifications
Brand Name :
ISO
Model Number :
F6036
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 Pcs per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Color :
Black
Use :
for Rubber Slurry Pump
Application :
for Acidic Slurry
Impeller :
5-Vanes Open
Feasure :
Corrosive Resistant
Part Code :
F6036
Description

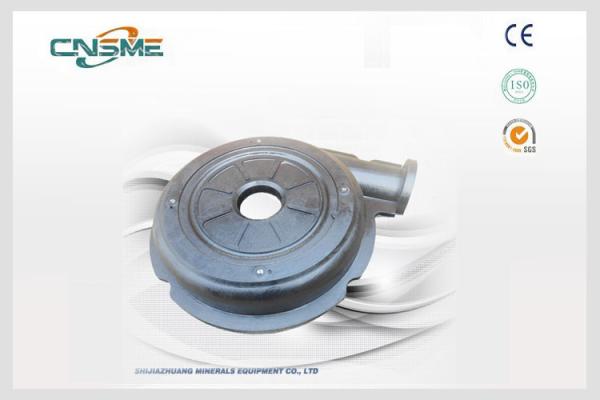

Frame Plate Liner F6036 Corrosion Resistant Pump Liners

Description:

Frame plate liner is the main part of the wetted parts of a rubber lined slurry pump. In a slurry pump the impeller and inside of the casing are always exposed to the slurry and have to be protected accordingly against wear. Material selection for impeller and casing is just as important as the pump selection itself.

The corrosion (and chemical attacks) of the wet parts in a Slurry Pump is a complex phenomenon both for metal and elastomer material. Natural rubber is by far the major elastomer in slurry pumping. Most cost effective for fine solids. Generally, depending on their sharpness and density, particle sizes of up to 5-8 mm can be pumped. Warning! Oversize scrap and sharp particles can destroy the wear parts, especially the impeller.

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid)

3-12≤65℃

Explosive of Rubber Lined Slurry Pump:

Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump

SME orders of Rubber Pump Spare Parts:

Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump

Corrosion Resistant Frame Plate Liner For Rubber Slurry Pump
