Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller
Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller
Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller
Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller
Specifications
Brand Name :
ISO
Model Number :
SP65206
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 Pcs per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Color :
Black
Use :
for Rubber Slurry Pump
Application :
for Acidic Slurry
Impeller :
5-Vanes Open
Feasure :
Corrosive Resistant
Part Code :
SP65206
Description

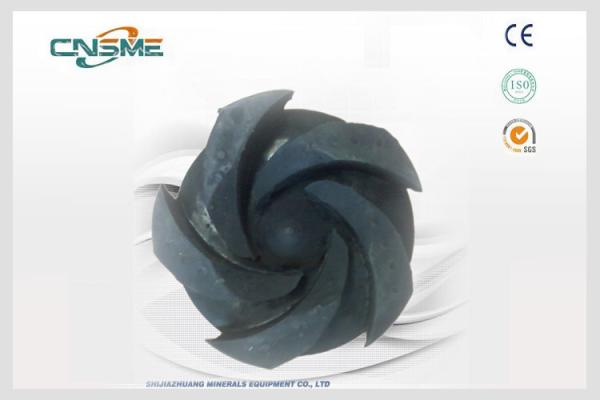

Rubber Vertical Pump Impeller SP65206 For Vertical Slurry Pump

Description:

The impellers of SV(R) series are open design, and this is the biggest difference from the SH series horizontal slurry pumps.

Impellers – Unique double suction impellers; fluid flow enters the top as well as the bottom. This design eliminates shaft seals and reduces thrust load on the bearings.

Large Particle – Large particle impellers are also available and enable passing unusually large solids.

Impellers for vertical slurry pumps are open type, 5-vane design, which makes it easier for big particles to pass.
Rubber impellers are installed in rubber lined vertical slurry pumps, and as an option, we can also install metal impellers in rubber lined vertical slurry pumps.

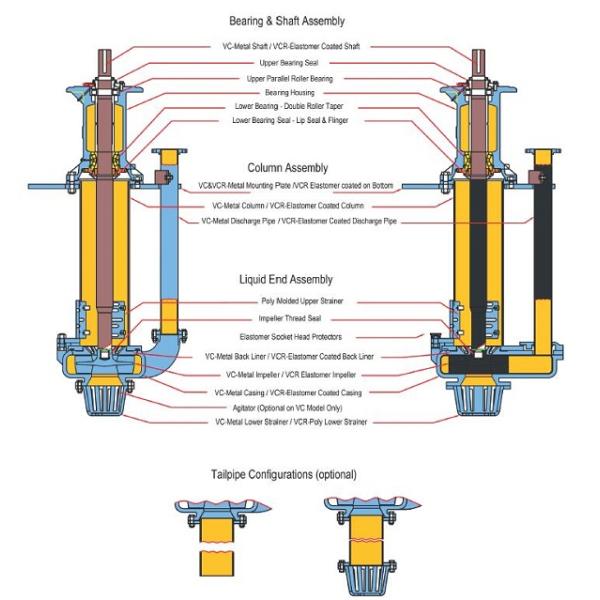

Construction of Vertical Slurry Pumps:

Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid)

3-12≤65℃

SME orders of Rubber Pump Spare Parts:

Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller

Corrosion Resistant Slurry Pump Parts Rubber Vertical Pump Impeller
