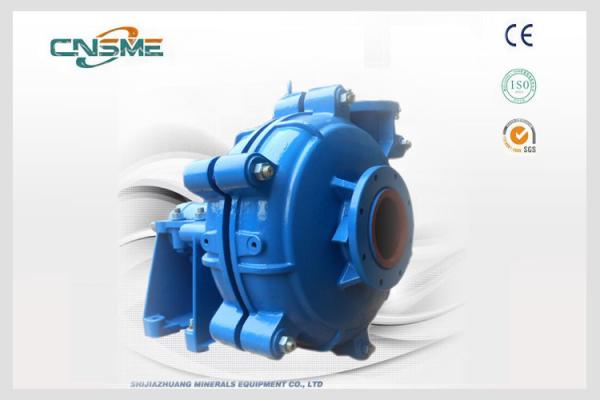

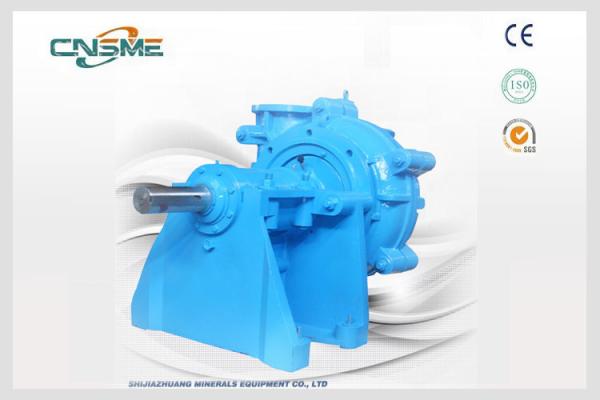

Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
Specifications
Brand Name :
CNSME
Model Number :
10/8F-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200000 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Seal :
Expeller Ring Seal
Type :
Horizontal
Principle :
Centrifugal
Use :
Ash Handling
Feature :
Hard Metal
Description

Hard Metal 8 Inch Horizontal Slurry Pump Widely Used And CE Approved

Introduction:

Type SH are rugged heavy duty slurry pumps for medium to lower heads.

SH Slurry Pumps are used for medium abrasive and lower solids concentration applications with slurries pH range 5~14. Material of wet-end parts can be natural rubber according to the customers' requirements, to pump corrosive mud.

SH/200F(10/8F-) is metal lined slurry pump with discharge size of 8-inch, and SH slurry pumps are slightly different in appearance from the standard SH and SL pumps, although theoretically they belong to the same range. 10/8F- is much more cost effective when we chose an 8-inch pump, compared with other models with the same discharge sizes.

Specifications:

Model SH-200F
Oulet 8-inch
Capacity 612-1368m3/h
TDH 11-61m
Rated Motor Power 260Kw
Speed 400-850r/min
NPSH 4-10m

Construction of SH Slurry Pumps:

Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Performance Curve:

Hard Metal 8 Inch Heavy Duty Centrifugal Pump Widely Used And CE Approved
