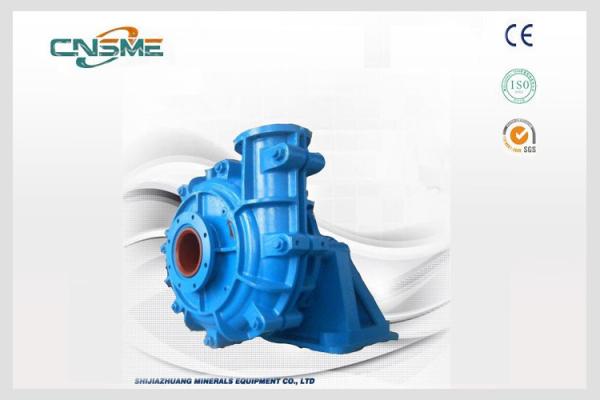

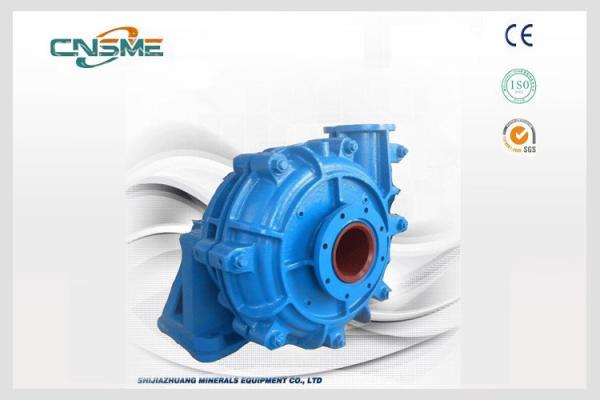

8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet
8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet
8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet
8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet
Specifications
Brand Name :
CNSME
Model Number :
10/8F-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200000 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Hardness :
HRC58-62
Type :
Horizontal
Principle :
Centrifugal
Use :
Deal Mining Tailings
Feature :
Interchangeable Hard Metal and Moulded Elastomer Liners
Description

8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pumps For Cane and Sugar Beet

Introduction:

10/8F- slurry is with 612-1368m3/h Capacity and 11-61m head. It is designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.

Type SH slurry pump adpot many kinds of sealing systems: expeller ring seal, gland packing seal, mechanical seal and all sorts of special combined seals:

1. Expeller drive seal: Use pressure seal produces by impeller and expeller in series, packing or lip sealing ring for shut down seal.

2. Packing seal: The routing sealing systems are suitable for various conditions and can be used in the corrosin or high temperature conditions such as polytetrafluoroethylene packing, graphite packing and etc. It also can be used in strong abrasive condition duty eith shaft ceramic sleeve of sprey weld.

3. Mechanical Seal: World-advanced sealing technique without sealing leakage, integrating construction installation & replacement, various construction suit for all kinds of conditions. High hardness creamic and alloy are adopted for material of friction parts. Design & macting of mechanical seal & sealing box is suitable for fluid state. It possesses high abrasive resistance & shakeproof to guarantee that sealing seffect can be satisfied by customers in various conditions.

Specifications:

Model SH-200F
Oulet 8-inch
Capacity 612-1368m3/h
TDH 11-61m
Rated Motor Power 260Kw
Speed 400-850r/min
NPSH 4-10m

Construction of SH Slurry Pumps:

8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Performance Curve:

8 Inch Fully Lined Heavy Duty Centrifugal Slurry Pump For Cane and Sugar Beet
