1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
Specifications
Brand Name :
CNSME
Model Number :
1.5/1B-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Heavy Duty
Type :
Horizontal
Seal Type :
Expeller Ring Seal
Use :
Deal Silt Soil
Hardness :
HRC58-62
Description

1 Inch Small Solid Sludge Slurry Pumps , Silt Soil Slurry Pumps

Introduction:

SH/25B is equivalent/identical/similar to WAR-MAN 1.5/1B- slurry pump, all the spare parts are interchangeable/replaceable. The maximum mating power for this pump is 15Kw.

Slurry pump SH series it is heavy and powerful centrifugal installation, capable of pumping viscous and abrasive media.

Horizontal Slurry pump with a suction pipe. Pump parts are subject to a minimum abrasion during use, resistant to shocks and high pressure water. Do not create a big noise at work, do not vibrate. Protected against leakage of liquid.

The discharge connection may be arranged at intervals of 45 degrees on demand and in any direction of the 8 position for easier installation and use.

Specifications:

Model SH/25B
Oulet 1-inch
Capacity 12.6-28.8m3/h
TDH 6-68m
Rated Motor Power 15Kw
Speed 1200-3800r/min
NPSH 2-4m

Construction of SH Slurry Pumps:

1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

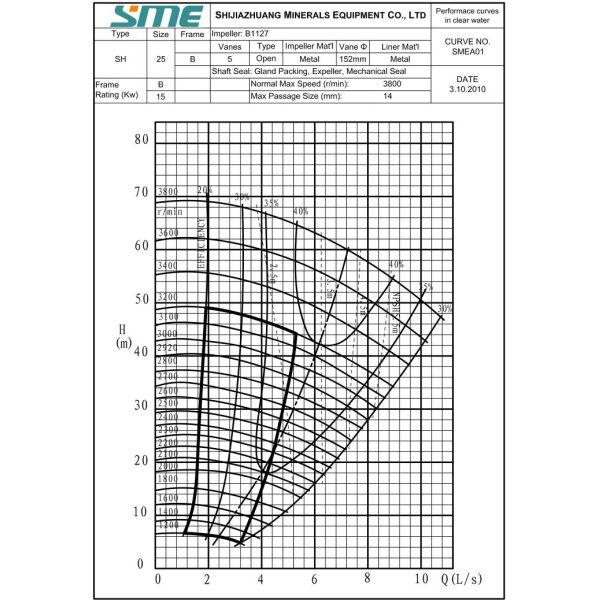

Performance Curve:

1 Inch Small Solid Sludge Slurry Pumps , Deal Silt Soil Slurry Pumps
