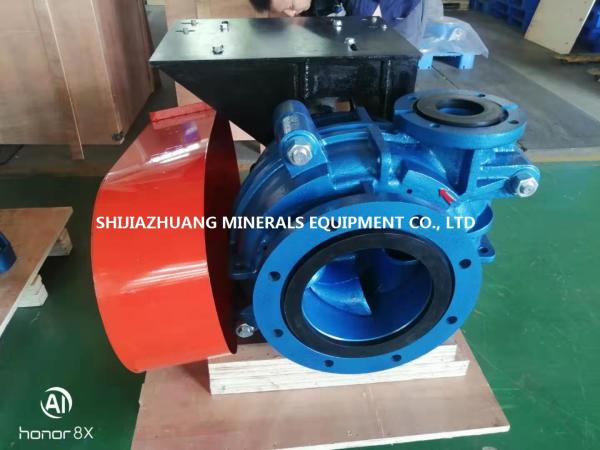

4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
Specifications
Brand Name :
CNSME
Model Number :
4E-F
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
A05 High Chrome Alloy
Type :
Horizontal Shaft
Impeller :
Open Type with 4 Vanes
Application :
Flotation Process
Theory :
Centrifugal
Efficiency :
Max. 68
Description

4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing


Overview:

A large oversized inlet with a unique impeller inducer blade handles heavy froth and higher viscosity dense slurries with ease. The War-man equivalent F line of horizontal froth pumps has proven valuable for very dense slurries where viscosity starts to become a pumping issue for the standard slurry pump.

Key features/benefits

  • Heavy duty construction with through-bolt design provides ease of maintenance and less down time
  • Ductile iron fully lined casing provides durability, strength and long service life
  • Large diameter, slow turning, high efficiency impellers maximize wear life and lower TOC
  • Large, open internal passages reduce internal velocities maximizing wear life resulting in lower operating costs
  • Unique impeller design for most difficult froth applications
  • Thick elastomer or metal bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and intermixability to reduce over all maintenance costs and maximize wear life
  • Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
  • Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
  • Standard can be converted by replacing cover plate, throat bush and impeller
  • Full flush, low flow or dry running centrifugal seals minimize water usage and operating costs


Specifications:

Model4E-F
Discharge44-inch (100mm)
Capacity72-432m3/h
TDH10-60m
Rated Motor Power120Kw
Speed500-1600r/min
Max. Efficiency68%



Construction of Froth Pump:
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing

Materials of Construction:

Part DescriptionMaterial
Volute LinerA05- High Chromium Alloy
ImpellerA05- High Chromium Alloy
ThroatbushA05- High Chromium Alloy
CasingsCast Iron
ShaftCarbon Steel
Back Liner A05- High Chromium Alloy



A05 Chemical Components:

Material Chemical Requirements, Weight %
DesignationMaterial NameCMnSiNiCrMoCuPVSDescriptionHardness
A03Ni-Hard 13.0-3.60.3-0.70.3-0.53.3-4.81.5-2.60-0.4...≤0.3 ≤0.15
A05Ultrachrome2.920.980.540.826~28≤0.8...0.062..0.05127% Cr Erosion Resistant White Iron58-62HRC
A06NI-Hard 43.20.21.5480.5...0.15...0.12Martensitic White Iron62-67HRC
A0715/3 Chrome/Moly Iron2.8-3.20.5-1.20.8-1.0...15-172.8-3.20.8-1.2.........Chromium/Molybdenum58-62HRC
A33 1.551.21.291.8936.71.921.31.........Corrosion-resistant Chrome
A49Ultrachrome1.570.711.362.01281.961.320.038...0.02728% Cr, Low C, White Iron
A61Hyperchrome4.4-4.62.0-2.50.3-0.8...30-322.5-3.0......0.2-0.3...Hypereutectic white iron
R55Standard Natural Rubber Natural Rubber for erosive applications65 Shore
U01Wear Resistant Polyurethane Polyurethane Elastomer78 Shore
Suitable Applications: 1. A05/A07 is suitable for heavy duty slurry with high abrasion with pH ranges 5-14.
2. A33 is suitable for acidic applications where pH ranges from 1-3.
3. A49 is for slurry both abrasive and corrosive, esp. for application where the slurry contains chloride.
4. R55 is for corrosive applications where slurry pH ranges from 2-4.
Remarks: 1. The above different kinds of material are for for pump wet-end parts, i.e: impeller, volute liner, throatbush, frame plate liner insert, cover plate liner, frame plate liner.
2. We also have C21, C23, and they are for parts like: shaft, shaft sleeve, shaft spacer, gland assembly etc.
3. For shaft sleeves, J04, J05 and J21 are also avaiable.
4. Pump bodies (cover plate and frame plate) and pump base, bearing housing can be made of G01-grey iron, D21-ductile iron.



Performance Curve:
4E-F High Chrome Iron Horizontal Froth Slurry Pump for Minerals Processing
