SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
Specifications
Brand Name :
CNSME
Model Number :
250ST- (12'' / 10'')
Certification :
ISO/CE/EAC/SGS
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Heavy Duty
Shaft Type :
Horizontal
Seal :
Expeller Seal
Delivery :
7 Days
Drive Type :
By Belts or Coupling
Description

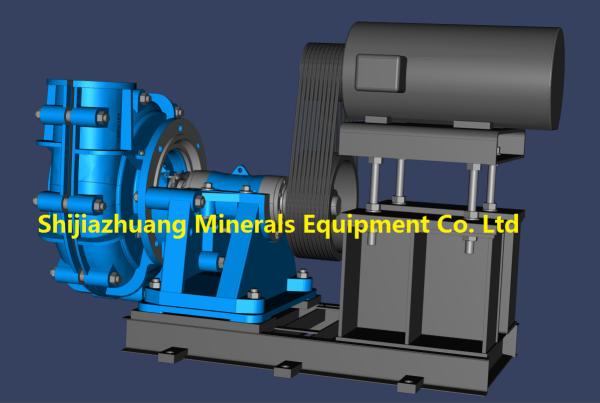

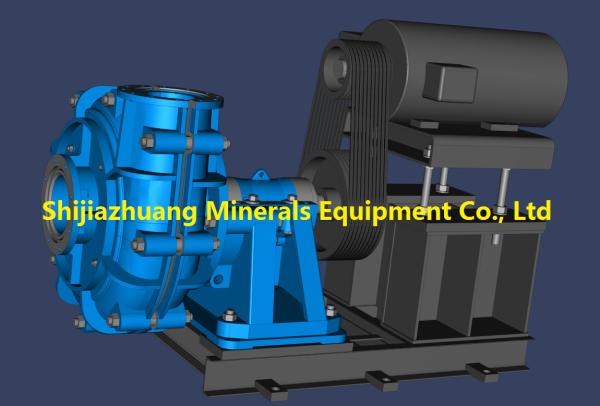

12 - 10 Metal Lined Slurry Pumps driven by 60Hz Electric Motor by Belts and Pulleys

Introduction:

We are, together with our customer from South America, making a one-stop solution to our final user with 2 of 10'' heavy duty slurry pumps with gland packing seal, driven by belts and pulleys with the electric motor.

Slurry pumps are designed and engineered for the most rugged and demanding installations. During years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.

SH-250ST (10-inch) is a very popular model among smaller slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.

1) Simple structure in linear type, easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.

3) High-pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.

Specifications:

Model SH/250ST (SH/250F is also available)
Outlet 10-inch
Capacity 936-1980m3/h
TDH 7-68m
Rated Motor Power 560Kw (260kW for F frame)
Speed 300-800r/min
NPSH 6m

Type Size Frame

Impeller:

G10147A05

FAM10147A05

 Shaft Seal Type Frame Rating(KW) Normal Max Speed(r/min) Max. Passage Size(mm)
SH 250 ST(F) 5 Closed Type Metal Vans, Diameter:813/762mm Gland Packing, Expeller, Mechanical Seal 560(260) 800 86

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Material: High Chrome Alloy A05 for Impeller

Soft Black Rubber R55 for Inner Liners

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

Construction of SH Slurry Pumps:

SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys

Performance Curve:

Slurry Pump SH Series Metal Slurry Pump Specifications
Pump
Model		 S×D
(inch)		 Allowable
Max. Power (kW)		 Material ClearWater Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SH/25B 1.5×1 15 Metal
(A05)		 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152 91
SH/40B 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184 118
SH/50C 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214 191
SH/75C 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245 263
SH/75D 4×3 60 245 363
SH/100D 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365 626
SH/100E 6×4 120 365 728
SH/150E 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510 1473
SH/150F 8×6 260 510 1496
SH/150R 8×6 300 510 1655
SH/200F 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686 3193
SH/200ST 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686 3750
SH/250F 12×10 260 936-1980 260-550 7-68 300-800 82 6 762 3760
SH/250ST 12×10 560 936-1980 260-550 7-68 300-800 82 6 762 4318
SH/300ST 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965 6409
SH/350TU 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10 1067

10000

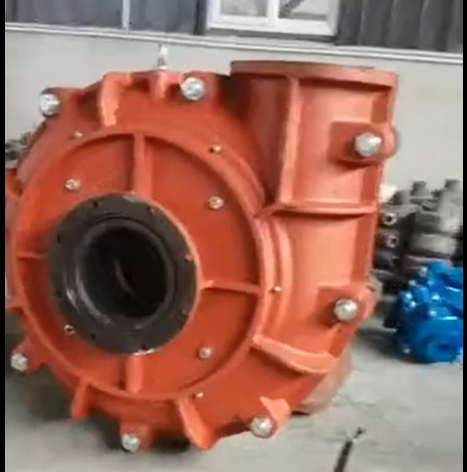

Slurry Pumps Completed:

SGS Metal Lined Heavy Duty Slurry Pump Driven By Belts And Pulleys
