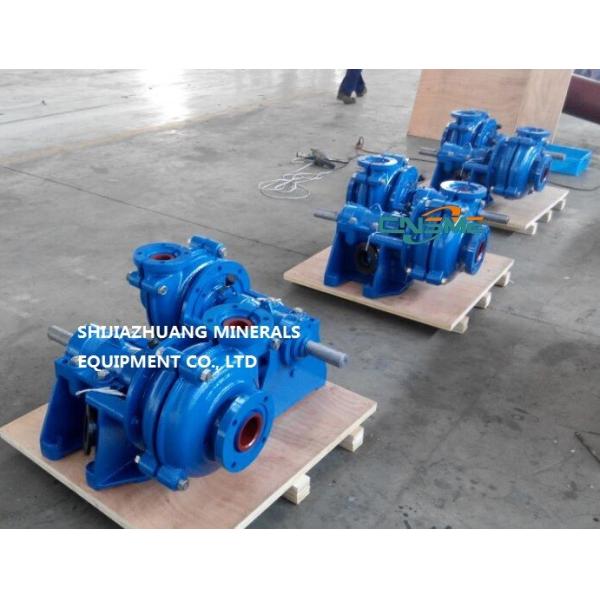

Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
Specifications
Brand Name :
CNSME
Model Number :
3/2C-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Heavy Duty
Shaft Type :
Horizontal
Seal :
Mechanical Seal
Delivery :
7 Days
Drive Type :
By Belts or Coupling
Description

Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers

Introduction:

Slurry pumps are designed and engineered for the most rugged and demanding installaions. During years, our pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability and efficiency.

SH-50C (3/2C-) is a very popular model among smaller slurry pump selections. It is horizontal pumps which are used on surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Specifications:

Model SH/50C
Oulet 5-inch
Capacity 39.6-86.4m3/h
TDH 12-64m
Rated Motor Power 30Kw
Speed 1300-2700r/min
NPSH 4-6m

Type Size Frame Impeller:C2147A05 Shaft Seal Type Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SH 50 C 5 Closed Type Metal Vans, Diameter:214mm Gland Packing, Expeller, Mechanical Seal 30 2700 25

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

Construction of SH Slurry Pumps:

Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers

Performance Curve:

Slurry Pump SH Series Metal Slurry Pump Specifications
Pump
Model		 S×D
(inch)		 Allowable
Max. Power (kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SH/25B 1.5×1 15 Metal
(A05)		 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152 91
SH/40B 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184 118
SH/50C 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214 191
SH/75C 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245 263
SH/75D 4×3 60 245 363
SH/100D 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365 626
SH/100E 6×4 120 365 728
SH/150E 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510 1473
SH/150F 8×6 260 510 1496
SH/150R 8×6 300 510 1655
SH/200F 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686 3193
SH/200ST 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686 3750
SH/250F 12×10 260 936-1980 260-550 7-68 300-800 82 6 762 3760
SH/250ST 12×10 560 936-1980 260-550 7-68 300-800 82 6 762 4318
SH/300ST 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965 6409
SH/350TU 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10 1067

10000

Slurry Pumps Packed in Wooden Packages:

Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers

Smaller Model of Heavy Duty Slurry Pump Used for Mill Discharge Filter Press with Closed Hard Metal Impellers
