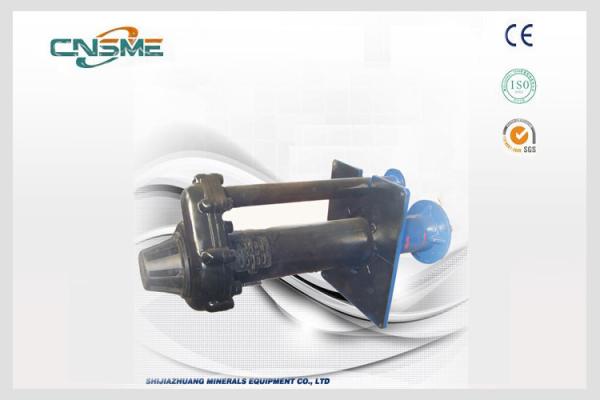

Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding
Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding
Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding
Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding
Specifications
Brand Name :
CNSME
Model Number :
150RV-SPR
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Application :
for Corrosive Slurry
Type :
Vertical Cantilever
Theory :
Centrifugal Heavy Duty
Feature :
Double Impeller Entry
Shaft Length :
1800mm
Description

Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding

Introduction:

SPR series centrifugal slurry pumps applications:

Heavy industry applications;

Abrasive and corrosive service;

Ready mix concrete;

Features :

Features

– Natural rubber lined wet parts.

– Vertical construction, less Installation Space.

– Equipped with replaceable shaft protection sleeve.

– Double suction semi-open impeller.

– No submerged bearing or packing.

– Recessed impeller option passes over-sized material.

– Agitator option keeps solids in suspension.

– Can be run in insufficient suction duties.

– Smooth and stable operation.

– Special materials or casting for specific liquid.

Specifications:

Model 150RV-SP
Capacity 108-479.16m3/h
TDH 8.5-40m
Rated Motor Power 110Kw
Speed 500-1000r/min
Max. Efficiency 52%
Standard Shaft Length 1800mm

Materials of Construction:

Part Description Material
Casing - Black Natural Rubber
Impeller - Black Natural Rubber
Back Liner - Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃

Performance Curve:

Type Size Frame Impeller:SVR15206 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SPR 150 S 5 Open Type Rubber Vans, Diameter:480mm Gland Packing, Expeller, Mechanical Seal 110 1000 45

SVR Series Vertical Rubber Sump Pump Specifations & Prices
Pump
Model		 S×D
(mm)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 Length
Shaft (mm)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SVR/40P 80×40 15 Rubber
()		 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 275
SVR/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 420
SVR/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 850
SVR/150S 240×150 110 72-504 20-140 10-35 500-1000 56 1800 480 1720

Construction of Vertical Slurry Pump:

Serial Number Parts Name Serial Number Parts Name
1 SHAFT 9 BACK LINER
2 BEARING 10 IMPELLER
3 BEARING HOUSING 11 PUMP CASING
4 BEARING SPACER 12 LOWER STRAINER
5 BEAIRING 13 DISCHARGE PIPE
6 SHIM 14 FLUSHING PIPE
7 COLUMN 15 COUPLING PART
8 STRAINER 16 MIDDLE SUPPORT PART

Projects with Vertical Slurry Pumps:

Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding

SME SPR Sump Pump Orders:

Heavy Industry Anti-Corrosion Slurry Sump Rubber Pump For Cyclone Feeding
